Refurbished 430808-001 Technical Specifications

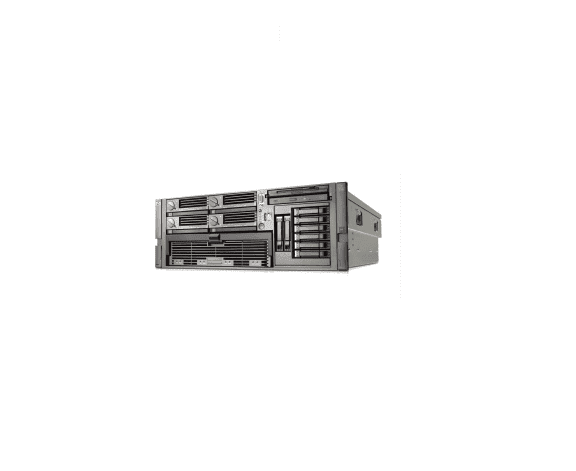

HP Proliant Dl580 G4 High Performance 2 X Intel Xeon 7140m Dc 3.40GHz 4gb Ram SAS SATA Hot Swap Combo 2 X Gigabit Ethernet 2 X Ps Ilo 4u Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett-Packard
Manufacturer Part Number : 430808-001
Product Name : Proliant Dl580 G4 Server – 4u Rack Mount Server (Performance Model)
PROCESSOR & CHIPSET :
CPU : Intel Xeon 7140m / 3.4 GHZ
Number Of Cores : Dual-Core
64-Bit Computing : Yes
CPU Qty : 2
Max CPU Qty : 4
L2 Cache : 2 X 1 Mb
CPU Upgradability : Upgradable
Chipset Type : Intel E8501
Front Side Bus : 800 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 32 Mb
Cache Per Processor : 16 Mb
MEMORY :
Installed Size : 4 Gb / 64 Gb (Max)
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 400 Mhz
Memory Specification Compliance : Pc2-3200
Form Factor : Dimm 240-Pin
Features : Registered, Online Spare Memory
Upgrade Rule : 2 Modules At A Time
STORAGE:
Hard Drive : Not Included
Optical Storage Type : Cd-Rw / Dvd-Rom Combo – Ide
Removable Storage Drives : Not Included
STORAGE CONTROLLERS :
Type : 1 X Sas – Plug-In Card – Pcie
Controller Interface Type : Sas
Storage Controller Name : Smart Array P400
Channel Qty : 2
Raid Level : Raid 0, Raid 5, Raid 6, Raid 10, Adg
Buffer Size : 512 Mb
GRAPHICS CONTROLLER :
Type : Integrated
Video Memory : 32 Mb Ddr Sdram
Video Interfaces : Vga
NETWORKING :
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc371i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
