Refurbished 418314-001 Technical Specifications

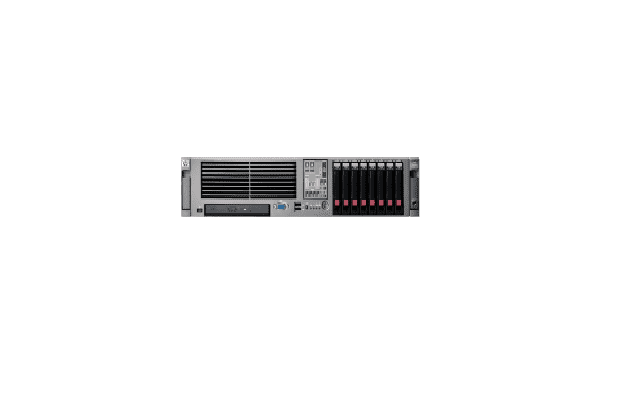

HP Proliant Dl380 G5 High Performance Server 2x Intel Xeon Dual-Core 5150/2.67GHz 4GB RAM Combo 2x Gigabit Ethernet 2u Rack Server.
GENERAL INFORMATION :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 418314-001
Product Name: Proliant Dl380 G5 High Performance Server
2U Rack Mount
PROCESSOR & CHIPSET :
Processor Type: Intel Xeon 5150/2.67 GHz
Multi-Core Technology: Dual-Core
64-Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel 5000p
Data Bus Speed: 1333 Mhz
CACHE MEMORY :
Cache Memory Type : L2 Cache
Installed Size : 4 Mb
Cache Per Processor : 4 MB
RAM :
Installed Size: 4 Gb
Max Supported Qty: 32 Gb
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Fb-Dimm 240-Pin
Features: Memory Mirroring, Fully Buffered, Online Spare Memory
Configuration Features: 4 X 1 Gb
STORAGE :
Hard Drive: Not Included
Hard Drive Interface: Hot-Swappable Sas
Hard Drive Bays: Eight Small Form Factor Hot Plug Hard Drives Bays
Optical Drive: Ide Dvd-Rom/Cdrw Combo
STORAGE CONTROLLERS :
Storage Controller Type(1st): 1 X Raid-Plug-In Card-Pci Express X8
Controller Interface Type: Serial Ata-150/Sas
Storage Controller Name: Smart Array P400
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10
Buffer Size: 512 Mb
Storage Controller Type(2nd): 1 X Ide-Integrated
Controller Interface Type: Ide/Ata
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: Sdram
Installed Size: 32 Mb
NETWORK & COMMUNICATION :
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free):
1 ( 0 ) X Front Accessible – 5.25in Slim Line
8 ( 8 ) X Hot-Swap Drive Bays- 2.5in Sff
Expansion Slots Total (Free):
3 (Total) / 3 (Free) X Pci Express X8 ( X4 Mode )
2 (Total) / 2 (Free) X Pci Express X16 ( X8 Mode )
8 (Total) / 4 (Free) X Memory – Fb-Dimm 240-Pin
2 (Total) / 0 (Free) X Processor
