417592-001 Technical Specifications

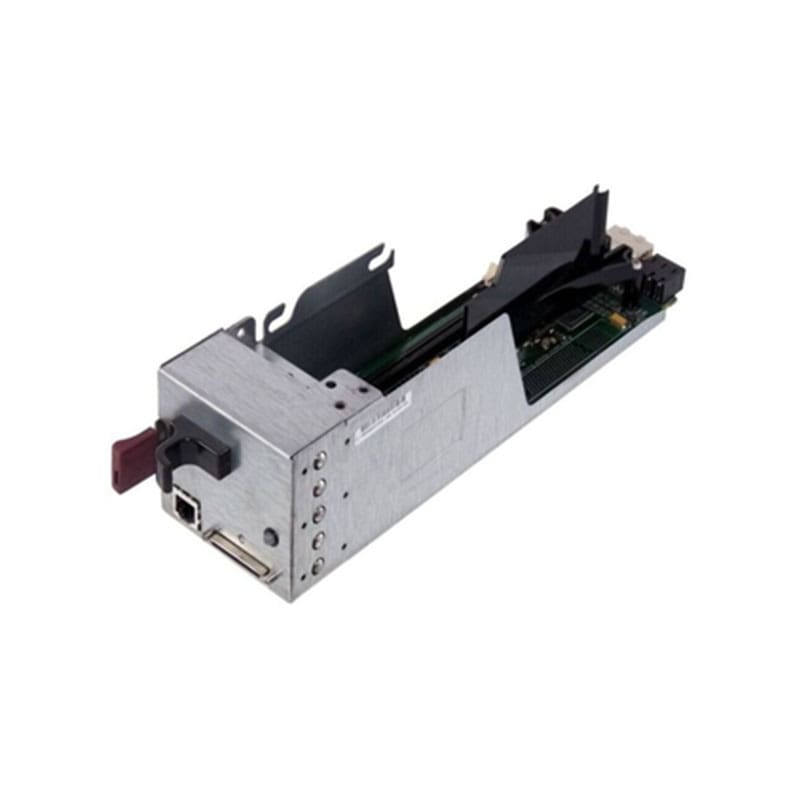

HP StorageWorks MSA20 Controller Module
Manufacturer: HP
Part Number or SKU# 417592-001
Product Type : Controller
Product Name : Storage Controller
Host interface: Ultra320 SCSI (SCSI-3)
Data transfer rate: 320 MBps
Cache memory: 128 MB
RAID levels supported: 0, 1, 3, 5, 10, 50
Maximum number of drives supported: 12
Operating temperature: 50° to 95°F (10° to 35°C)
Operating humidity: 10% to 90% relative humidity (non-condensing)
Dimensions (HxWxD): 1.7 x 6.9 x 11.7 inches
Weight: 2.4 lbs
