Refurbished 410636-001 Technical Specifications

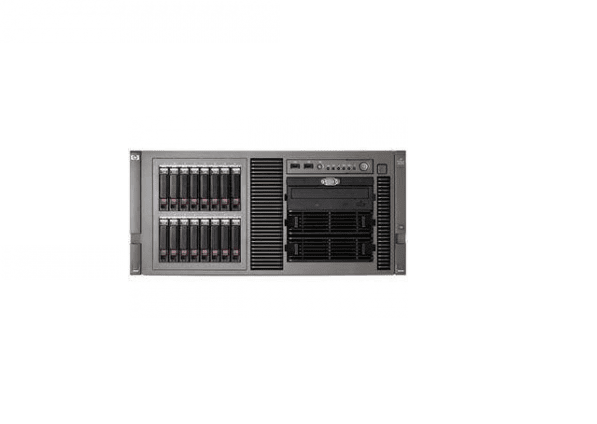

HP Proliant Ml370 G5 1x Intel Xeon Dual Core 5060 / 3.2GHz 2GB RAM 48x Cd ROM 2x Gigabit Ethenet ILO 5u Rack Server.
General Information :
Manufacturer : hewlett-packard
Manufacturer part number : 410636-001
Product name : proliant ml370 g5 5u rack Mount server
Processor & chipset :
Processor type : intel xeon 5060 / 3.2ghz
Multi-core technology : dual-core
64-bit computing : ye
Installed qty : 1
Max supported qty : 2
Upgradability : upgradable
Chipset type : intel 5000p
Data bus speed : 1066 mhz
Cache memory :
Cache memory type : l2 cache
Installed size : 4 mb
Cache per processor : 4 mb ( 2 x 2 mb )
Ram :
Installed size : 2 gb
Max supported size : 64 gb
Technology : ddr2 sdram – advanced ecc
Memory speed : 533 mhz
Memory specification compliance : pc2-5300
Form factor : fb-dimm 240-pin
Features:
Memory mirroring
Fully buffered
Online spare memory
Configuration features : 2 x 1 gb
Storage & storage controller :
Hard drive : none
Optical storage type : cd-rom – ide
Read speed : 48x
Storage controller type(1st) : 1 x raid – plug-in card – pci express x8
Controller interface type : serial ata-150 / sas
Storage controller name : smart array p400
Raid level : raid 0, raid 1, raid 5, raid 10
Buffer size : 256 mb
Storage controller type(2nd) : 1 x ide – integrated.
Controller interface type : ide/ata
Display & graphics :
Graphics controller type : integrated
Graphics processor : ati es1000
Video memory : 32 mb sdram
Network & communication :
Networking : network adapter – pci express x4 – integrated.
Ethernet ports : 2 x gigabit ethernet.
Ethernet controller : 2 x hp nc373i
Data link protocol : ethernet, fast ethernet, gigabit ethernet.
Remote management controller : integrated lights-out 2 standard.
Features : wake on lan (wol)
Compliant standards : ieee 802.3, ieee 802.3u, ieee 802.3ab
Expansion & connectivity :
Expansion bays total (free):
3 ( 2 ) x front accessible – 5.25in x 1/2h
8 ( 8 ) x hot-swap – 2.5in
Expansion slots total (free):
7 ( 6 ) x pci express x4
2 ( 2 ) x pci-x / 133 mhz
8 ( 6 ) x memory – fb-dimm 240-pin (8 DDR2 Slots)
2 ( 1 ) x processor.
2 ( 1 ) x memory board.
Interfaces & ports:
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
1 x serial – rs-232 – 9 pin d-sub (db-9)
2 x display / video – vga – 15 pin hd d-sub (hd-15) ( 1 in front )
6 x usb – 4 pin usb type a ( 2 front, 2 rear, 2 internal )
2 x network – ethernet 10base-t/100base-tx/1000base-t – rj-45
1 x management – hp ilo – rj-45
Power description:
Device : power supply – hot-plug
Power redundancy : optional
Power redundancy scheme : 1+1 (with optional power supply)
Installed qty : 1
