405-AAEJ Technical Specifications

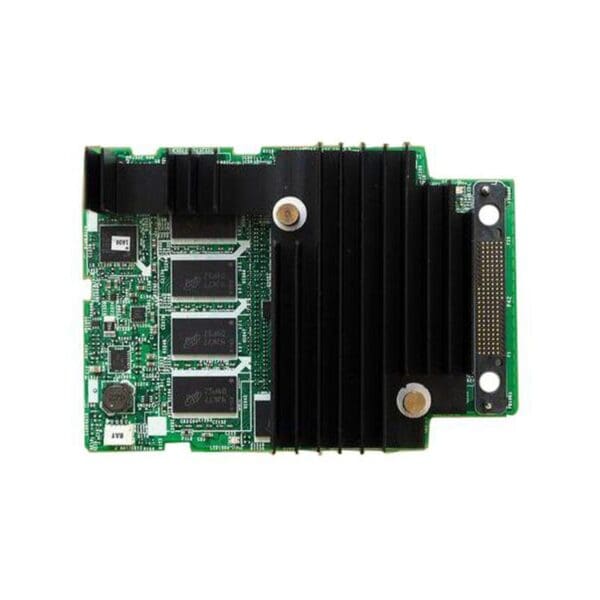

Dell PERC H730 1GB NV Cache SAS 12Gbps / SATA 6Gbps SPCI Express 3.0 x8 0/1/5/6/10/50/60 RAID Controller Card
Manufacturer Part Number 405-AAEJ
Brand Name Dell
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
Data Backup Type NV Cache
Memory
Cache Memory 1 GB
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 8
SAS Connector Details 2 SFF-8643
Physical Characteristics
Height 2.5″
Depth 7″
Form Factor Plug-in Card
Miscellaneous
Platform Supported Linux
PC
