405-AADP Technical Specifications

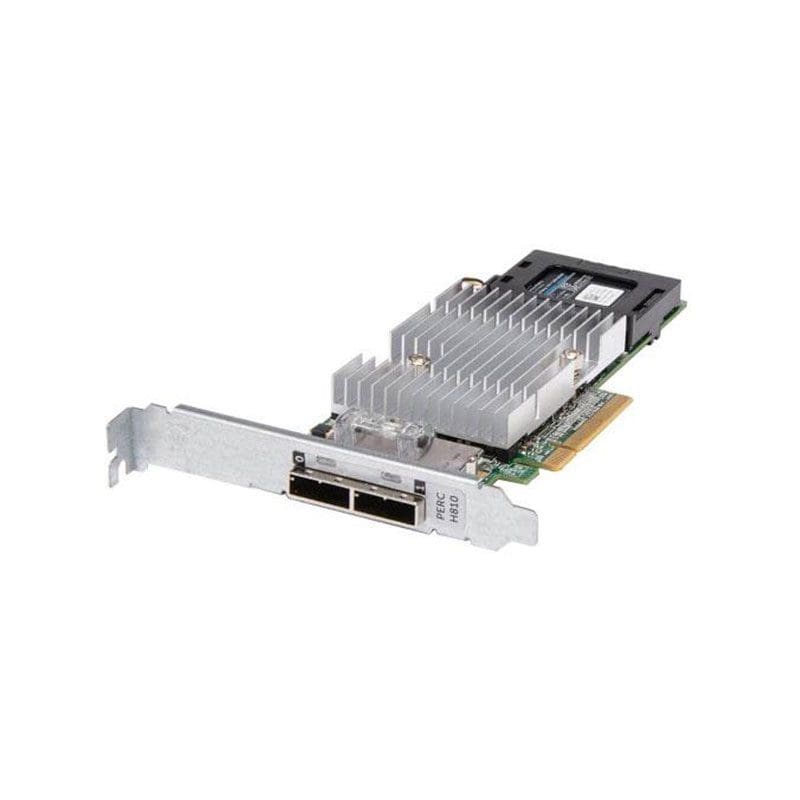

DELL Perc H810 6gb/s Pci Express 2.0 Sas Raid Controller With 1gb Nv Cache
Manufacturer: Dell
Product: Perc H810 Adapter Raid Controller Card
Part Number: 405-aadp
Specifications:
Interface Type: Pcie 2.0 X8
Interface: Sas 2
Data Transfer Rate: 600 Mbps
Buffer Size: 1 Gb
Supported Devices: Hard Drive, Disk Array (raid)
Channel Qty: 8
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
System Requirements: Microsoft Windows Server 2008 R2 Sp2, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Suse Linux Enterprise Server 10 Sp4, Suse Linux Enterprise Server 11 Sp2
