Refurbished 403684-001 Technical Specifications

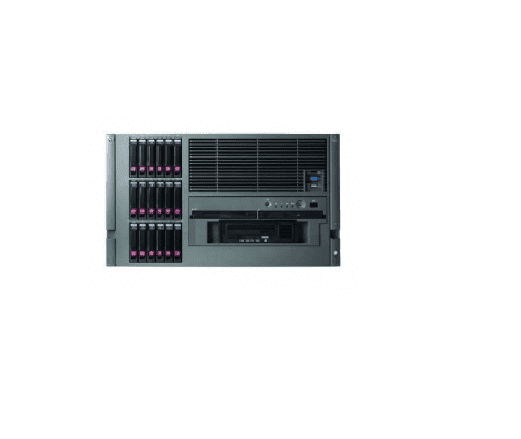

HP Proliant Ml570 G4 4x Intel Xeon DC 7041/3.0GHz 4GB RAM Combo 2x Gigabit Ethernet 6u Rack Server.
GENERAL INFORMATION :
Manufacturer: Hewlett-Packar
Manufacturer Part Number: 403684-001
Product Name: Proliant Ml570 G4 6u Rack Mount High Performance Rack Server
PROCESSOR & CHIPSET :
Processor Type: Intel Xeon 7041 / 3.0ghz
Number Of Cores : Dual-Core (2 Core)
64-Bit Computing : Yes
Installed Qty: 2
Max Supported Qty: 4
Upgradability: Upgradable
Processor Technology:
Em64t
Intel Execute Disable Bi
Hyper-Threading Technology
Intel Virtualization Technology
Enhanced Intel Speedstep Technology
Chipset Type: Intel E8501
Data Bus Speed: 800 Mhz
CACHE MEMORY :
Cache Memory Type: L2 Cache
Installed Size: 8 Mb
Cache Per Processor: 4 Mb
Multi-Core Cache Configuration: 2 X 2 Mb
MEMORY
Installed Size: 4 Gb
Maximum Size: 64 Gb
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed:400 Mhz
Memory Specification Compliance: Pc2-3200
Form Factor: Dimm 240-Pin
Features: Registered, Online Spare Memory
Upgrade Rule: 2 Modules At A Time
STORAGE :
Hard Drive : None
Optical Drive Type : Cd-Rw / Dvd-Rom Combo – Ide
STORAGE CONTROLLER :
Storage Controller (1st) Type: 1 X Serial Attached Scsi – Plug-In Card – Pci Express
Controller Interface Type: Serial Attached Scsi (SAS)
Storage Controller Name: Smart Array P400
Channel Qty: 2
Raid Level: Raid 0, Raid 5, Raid 6, Raid 10, Adg
Buffer Size: 512 Mb
Storage Controller (2nd) Type: Ide – Integrated
GRAPHICS CONTROLLER :
Graphics Controller Type: Integrated
Video Memory: Ddr Sdram
Installed Size: 32 Mb
NETWORKING :
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): 2 X Hp Nc371i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free) :
1 (Total) / 0 (Free) X Front Accessible – 5.25in Slim Line
1 (Total) / 1 (Free) X Front Accessible – 3.5in Slim Line
1 (Total) / 1 (Free) X Front Accessible – 5.25in X 1/2h
18 (Total) / 18 (Free) X Hot Swap – 2.5in Sff (18 Bays)
POWER DESCRIPTION :
Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Installed Qty: 2 / 2(Max)
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 1300 Watt.
