403-BBMY Technical Specifications

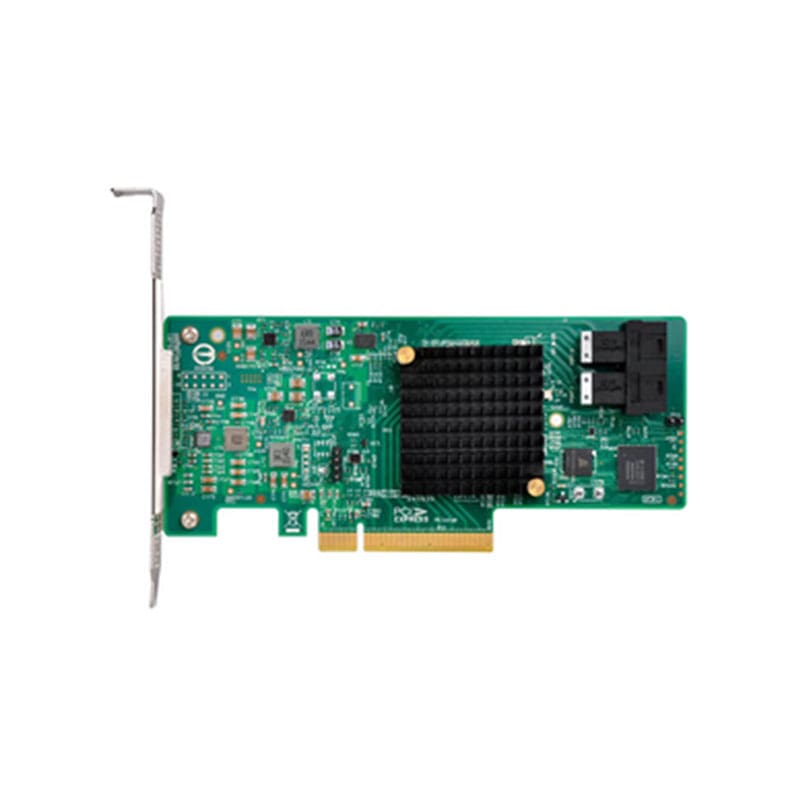

9311-8I 8-port Internal 12 Gigabytes Per Second (GBPS) Serial-Attached SCSI (SAS) Peripheral Component Interconnect Express (PCI-E) 3.0 X 8 Host Bus Adapter
Manufacturer: Dell
Part Number or SKU# 403-BBMY
Device Type: Host Bus Adapter
Technical Information
Io Controller SAS 3008 Fusion Mpt 2.5
Port Count 8 Port, Internal
Connectors
Mini SAS Hd
sff8643 Two (x4)
Storage Connectivity Data Transfer Rates 12GBPS SAS 3.0 Compliant
Sas Bandwidth
half Duplex (x8 Wide Bus)
9600 MBPS
Port Configurations of Dell PCI-E Adapter
8 Ea, X1 Ports (individual Drives)
2 Ea, X4 Wide Port
Host Bus X8 Lane, PCI-E 3.0
Pci Data Burst Transfer Rates
half Duplex
x8, PCI-E 3.0, 8000 MBPS
Form Factor Low Profile
