403-BBMD Technical Specifications

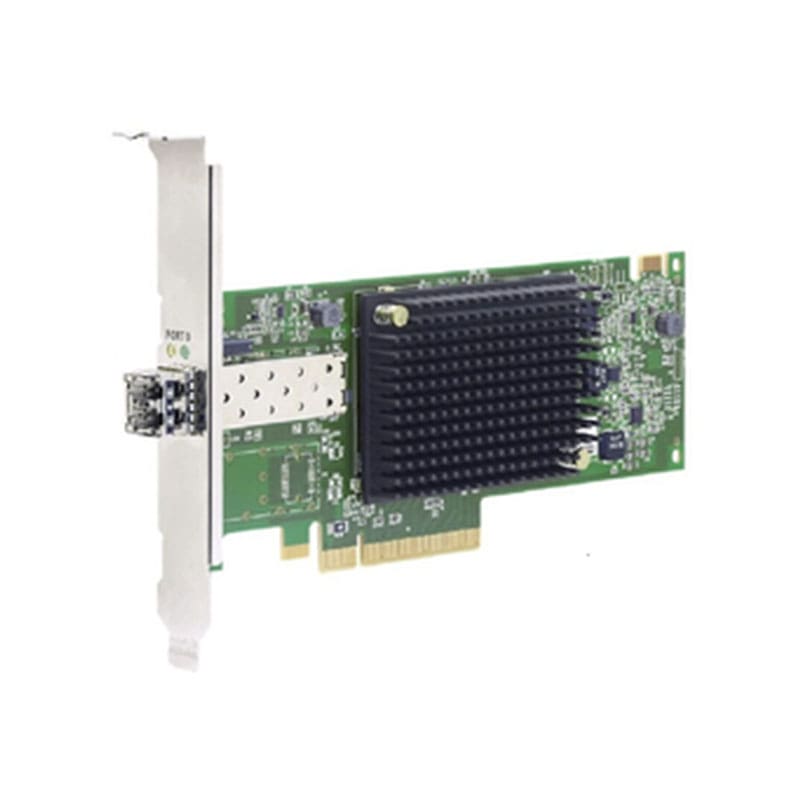

Dell Single Port 16GFC Short Wave Optical Low Current (LC) Small Form-Factor Pluggable Plus (SFP+) FC Host Bus Adapter
Manufacturer: Dell
Part Number or SKU# 403-BBMD
Device Type: Converged Network Adapter (CNA)
Optical Data Rates: 14.025 GBPS (1600MBPS), 8.5 GBPS (800MBPS), 4.25 GBPS (400 Mbps) (auto-detected)
Hardware Environment: Powerpc, Sparc, Intel X86, X64
Ports: 1
Cable Support: 100m At 32GB On 50/125 Micrometre Om4 Mmf, 20m At 32GB On 50/125 Micrometre Om2 Mmf, 70m At 32GB On 50/125 Micrometre Om3 Mmf, Operating At 32GB
Optics: Optics Short Wave Lasers With LC Type Connector Optics
Operating Humidity: 5% To 95% Non-condensing
Host Bus Type: PCI-E Gen3 X8
I/o Controller: Xe501
Storage Temperature: -20° To 85°c (-4° To 185°f)
Os Support: Additional Support Is Available From Oems And Partners, Oracle Solaris, Suse® Linux Enterprise Server, Vmware Vsphere.
