403-BBKN Technical Specifications

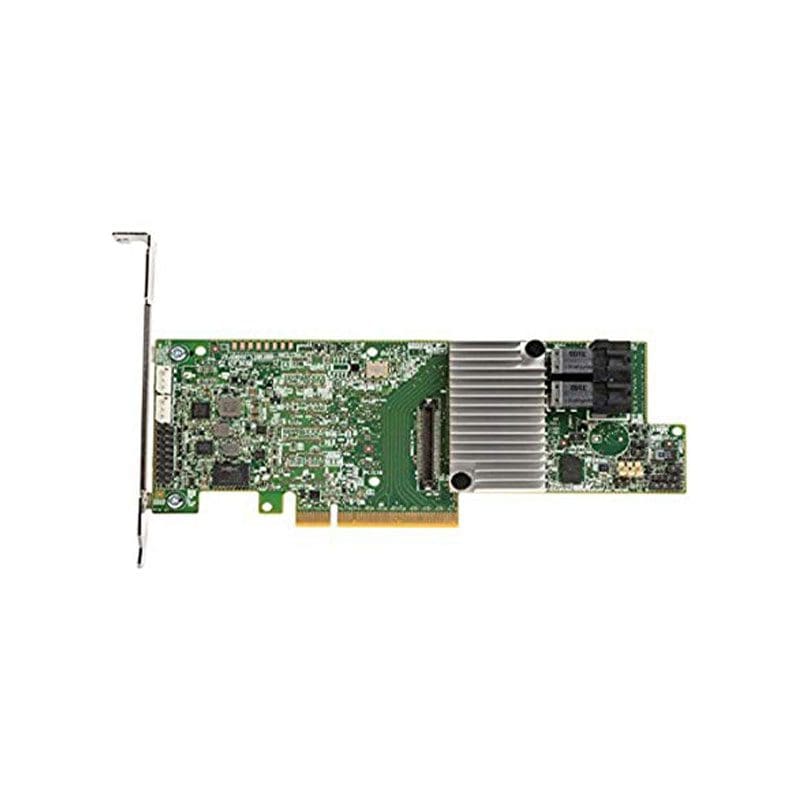

Dell LSI MegaRAID 1GB Cache 8-Port SATA 6Gbps SAS 12Gbps PCI Express 3.0 X8 MD2 Low Profile RAID Controller Card
Category Dell Controller
Sub-Category RAID Controller
Generation PCI-Express
Part Number 403-BBKN
Products ID 726186
Device Type Storage Controller (RAID) – Plug-in Card
Interface Type PCI Express 3.0 x8
Data Transfer Rate Up to 12Gb/s per Port
Internal Ports 8
Supported Devices Up to 128 SAS/SATA
Internal Connectors 2 mini-SAS SFF-8643
Cache 1GB 1866MHZ DDRIII SDRAM
RAID Level RAID 0 1 5 6 10 50 60
