3P0R3 Technical Specifications

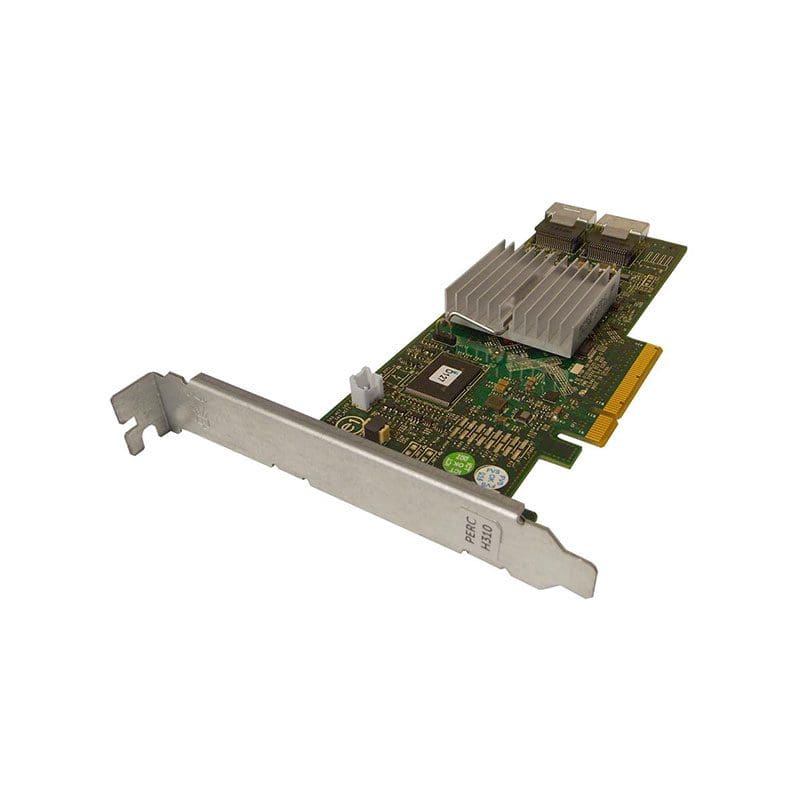

Dell PERC H310 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 0/1/5/10 RAID Controller Card
Part Number: 3p0r3
Manufacturer: Dell
Technical Specifications:
Category : Dell Controller
Sub-category : Raid Controller
Generation : Pci-express
Device Type : Storage Controller (raid) – Plug-in Card
Interface Type : Pci Express 2.0 X8
Data Transfer Rate : Up To 6gb/s Per Port
Connectors : Two X4 Internal Mini-sas Sff8087
Form Factor : 4s/2u
Raid Controller : Raid 0 1 5 10 50
Sas Controller : Lsi Sas 2008
Pci Voltage : +12v +10%
Pci Card Type : 3.3v Add-in Card
