Refurbished 383356-001 Technical Specifications

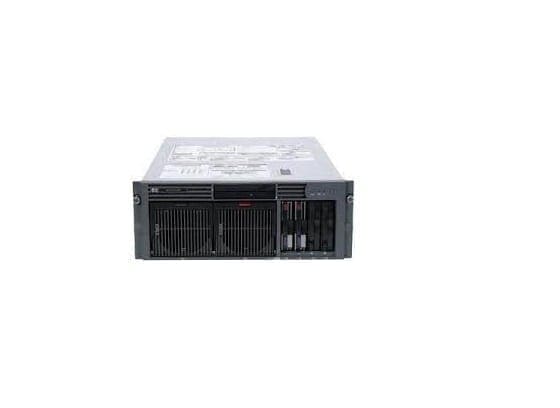

HP ProLiant DL585 – Dual-Core Opteron 865
GENERAL
Packaged Quantity1
Product Form Factor 4U Rack mount
Built-in Devices LED panel
Server Scalability 4-way
Front Accessible Bays Qty2
Hot Swap Qty4 Bays
Manufacturer
PROCESSOR / CHIPSET
CPUAMD Dual-Core Opteron 865 / 1.8 GHz
Number of Cores Dual Core (2 Core)
64-bit ComputingYes
Data Bus Speed1000 MHz
CACHE MEMORY
Installed SizeL2 cache – 4 MB
Cache Per Processor2 MB ( 2 x 1 MB )
RAM
Installed Size2 GB
Technology DDR SDRAM – Advanced ECC
Memory Speed333 MHz
Memory Specification CompliancePC2700
Upgrade Rule2 modules at a time
MEMORY
Form Factor DIMM 184-pin
Slots Qty16
STORAGE
RAID LevelRAID 0, RAID 1, RAID 10, RAID 5
Typenone
Read Speed24x
ENVIRONMENTAL PARAMETERS
Humidity Range Operating10 – 70%
Sound Emission55 dBA
HARD DRIVE
TypeNo HDD
STORAGE CONTROLLER
Type1 x RAID – integrated – PCI-X
Interface TypeUltra160 SCSI
Storage Controller NameSmart Array 5i Plus Controller
Channel Qty2
Buffer Size64 MB
STORAGE CONTROLLER (2ND)
Type1 x IDE – integrated
Controller Interface TypeIDE/ATA
PROCESSOR
Installed Qty2
Max Supported Qty4
Upgradabilityupgradable
FLOPPY DRIVE
Type3.5″ 1.44 MB floppy
MISCELLANEOUS
Compliant StandardsACPI 1.0a
MONITOR
Monitor TypeNone.
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Form Factorintegrated
Compliant StandardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Interface (Bus) TypePCI-X / 133 MHz
FeaturesWake on LAN (WoL)
GRAPHICS CONTROLLER
Form Factorintegrated
Interface TypePCI
Video Memory8 MB SDRAM
Video InterfacesVGA
DIMENSIONS & WEIGHT
Width19 in
Depth26.5 in
Height6.9 in
PRINTER
Typenone
PHYSICAL CHARACTERISTICS
Form Factorrack-mountable
Weight65.92 lbs
POWER
Typepower supply – hot-plug
Power Redundancyyes
Power Redundancy Scheme1+1
Installed Qty2
Max Supported Qty2
Min Operating Temperature50 °F
Max Operating Temperature95 °F
OPERATING SYSTEM / SOFTWARE
OS CertifiedMicrosoft Windows 2000 Advanced Server, Microsoft Windows 2000 Server, Microsoft Windows Server 2003 Enterprise Edition, Red Hat Enterprise Linux 3, SuSE Linux Enterprise Server 9GENERAL
