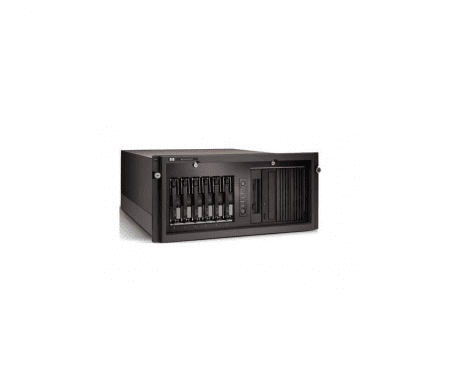

Refurbished 382188-405 Technical Specifications
HP Proliant Ml350 G4p SCSI CTO Chassis With no CPU 0mb Ram ultra320 Scsi gigabit Ehternet ilo 8mb Ati Rage Xl 725watt Ps 5U Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 382188-405
Product Name: Proliant Ml350 G4p Server -Cto Model
5U Rack Mount Server
PROCESSOR & CHIPSET:
Installed Processor: No Cpu
Max Supported Qty: 2
Cache: 2 Mb Level 2 Cache
Chipset: Intel E7520 Chipset
Fsb: 800 Mhz
Chipset Type: Intel E7520
Data Bus Speed: 800 Mhz
MEMORY:
Installed Size: 0 Mb / 12 Gb (Max)
Technology: Ddr2 Sdram
Memory Protection: Advanced Ecc
Memory Specification Compliance: Pc2-3200
Form Factor: Dimm 240-Pin
STORAGE CONTROLLER(1ST):
Integrated Dual Channel Ultra320 Scsi Adapter (All Models)
Storage Controller Type: 1 X Scsi – Integrated – Pci 64
Controller Interface Type: Ultra320 Scsi
Channel Qty: 2
STORAGE CONTROLLER(2ND):
Hp Integrated 2 Port Sata Controller (Only For Sas/Sata Models)
Storage Controller Type: 1 X Ide – Integrated
Raid Controller: Smart Array 641 Controller (Only For Array Models)
STORAGE:
Hard Drive: None.
Hard Drive Interface: Support For Up To Six Wide Ultra320 Hot Plug Hard Drives
Hard Drive Bays: 6 Front Accessible Hot Swap Bays And Four Non Hot Plug Scsi Drive 6 Bays
Optical Storage: None – Ide
Floppy Drive: None
DISPLAY & GRAPHICS:
Graphics Controller: Integrated Ati Rage Xl Video Controller With 8-Mb Sdram Video Memory Vga Connector Up To 1200 X 1600 Resolution Supported
NETWORKING:
Networking: Network Adapter – Pci – Integrated
Ethernet Controller(S): Hp Nc7761
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out Standard
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
