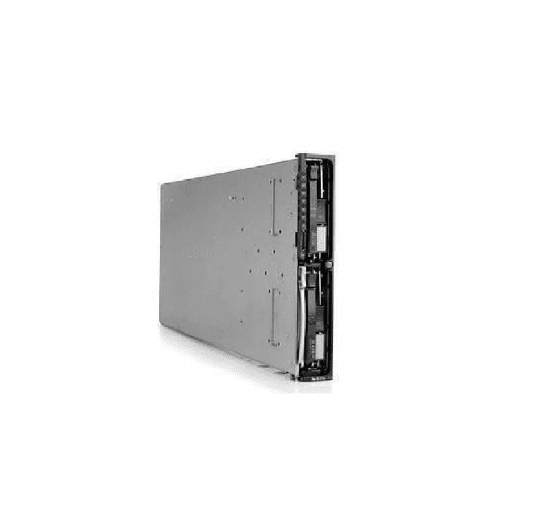

Refurbished 345020-B21 Technical Specifications
HP Proliant Bl20p G2 2p Intel Xeon 3.2GHz 1GB RAM Wide Ultra Scsi 3 X Gigabit Ethernet Ilo Blade System.
General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 345020-B21
Product Name: Proliant Bl20p Blade Server
Processor & Chipset:
Processor Type: Intel Xeon 3.2 Ghz
Installed Processor Qty: 2
Max Supported Qty: 2
Mainboard Chipset Type: Serverworks Grand Champion Le
Data Bus Speed: 533 Mhz
Cache Memory:
Cache Memory Type: L2 Cache
Installed Size: 2 Mb
Cache Per Processor: 1 Mb
Memory:
Installed Ram Size: 1 Gb / 8 Gb (Max)
Technology: Ddr Sdram – Ecc
Memory Speed: 266 Mhz
Memory Specification Compliance: Pc2100
Features: Registered
Storage & Storage Controller:
Hard Drive: None.
Max Internal Storage Support: 293.60 Gb Scsi – (2 X 146.8 Gb Hard Drives)
Storage Controller:
Smart Array 5i Plus
64 Mb Ultra Scsi
Pci Integrated
Raid Controller Supporting 0, 1, 1+0, 5 Raid Level(S)
Networking:
3 X Nc7781
10/100/1000mbps
Ieee 802.3ab
Gigabit Ethernet
Pci-X Integrated
1 X 10/100mbps
Ieee 802.3u
Fast Ethernet
Expansion & Connectivity:
Expansion Bays Total (Free):
Drive Bay Hot-Swappable (2 Total)
Interfaces/Ports :
2 X 4-Pin Type A – Usb.
1 X Display.
1 X Ilo Remote Management.
