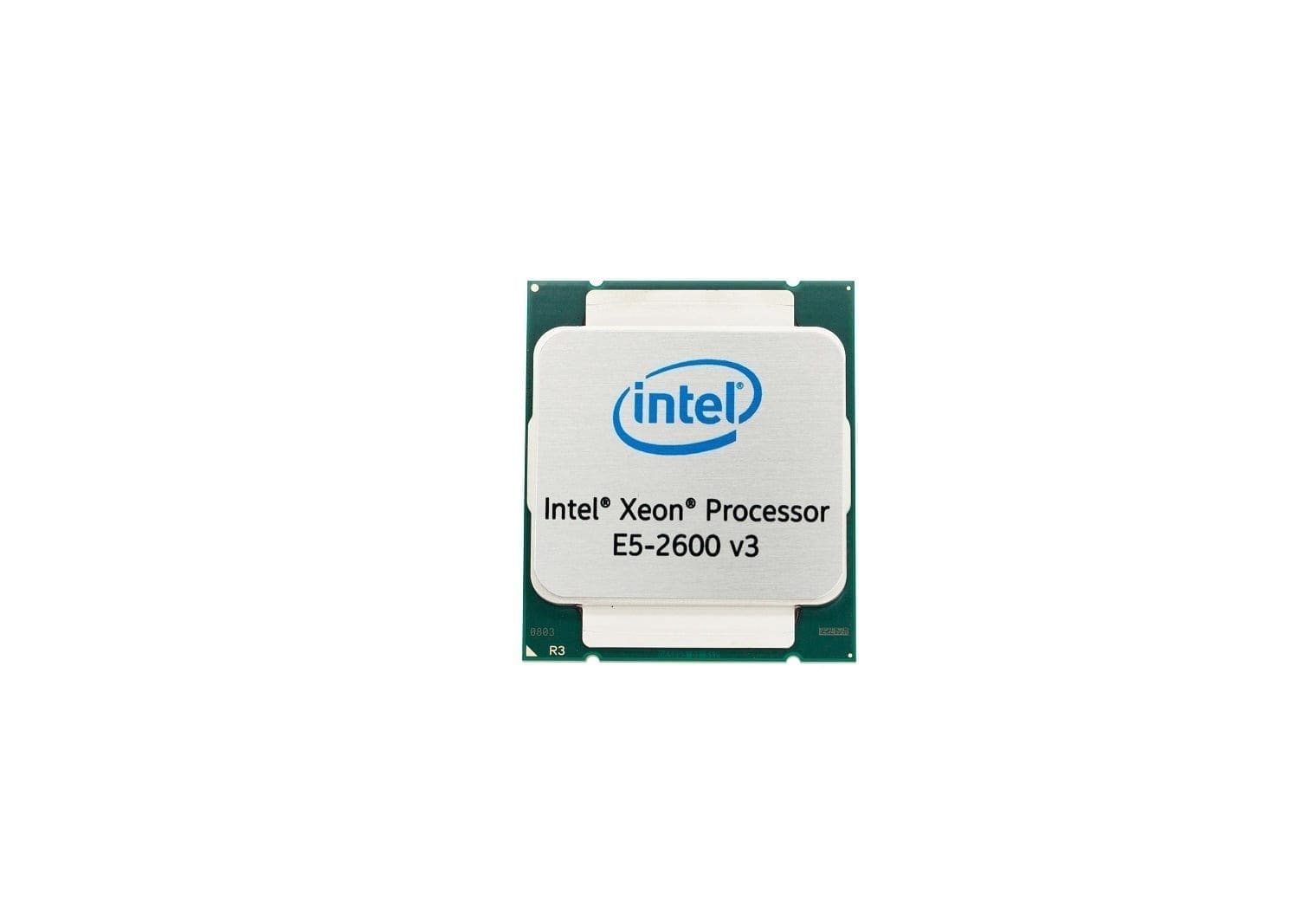

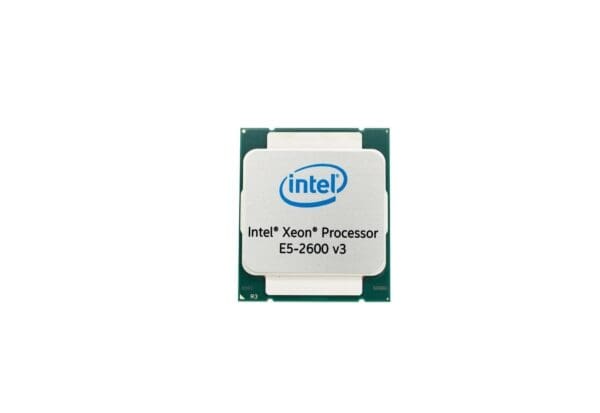

338-BGNJ Technical Specifications
Dell 2.30GHz 9.60GT/s QPI 45MB L3 Cache Intel Xeon E5-2699 v3 18 Core Processor
Brand Intel
Part No. 338-BGNJ
Processor Type Server
Processor Family E5-2600 v3
Series Xeon Processor
Core Model Type/ProcNo. E5-2699 v3
Processor Code Name Haswell
Core Stepping C0
Manufacturing Technology 22 nm
CPU ID String 306F2
# of Cores 18
# of Threads 36
Clock Speed 2.30 GHz
L3 Cache Size 45 MB
Front Side Bus / QuickPath Interconnect 9.60 GT/s QPI
Thermal Power 145 Watts
VID Voltage Range 0.65V–1.30V
CPU Socket Type LGA 2011-3
Product Condition OEM
