32548IXS Technical Specifications

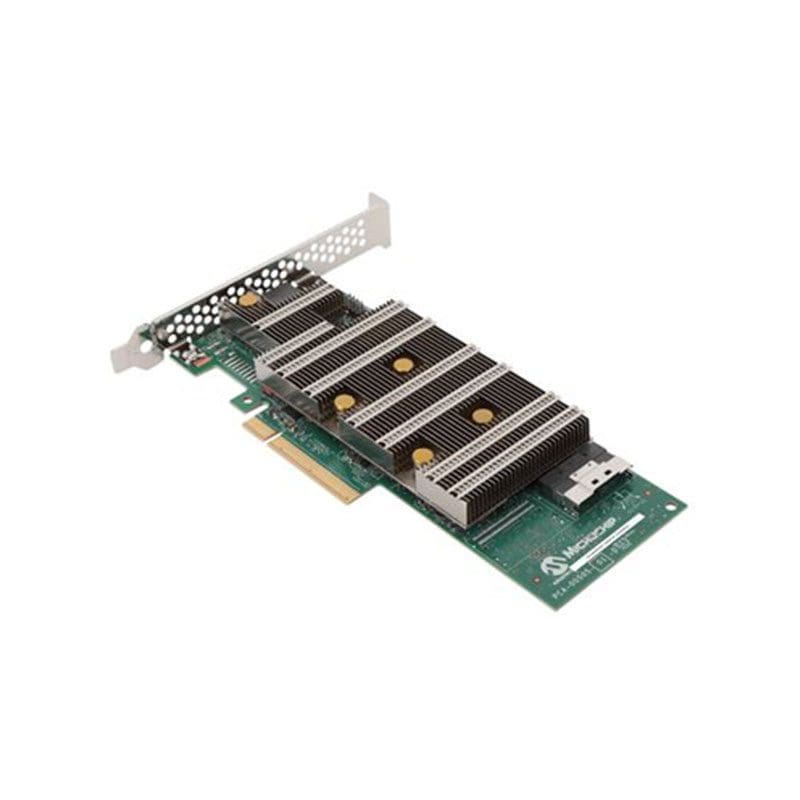

Microchip Adaptec SmartRAID 3200 Series 3254-8i Storage Controller (RAID) SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) PCIe 4.0 x8
Brand : Microchip
Manufacturer Part Number : 32548IXS
Device Type Storage controller (RAID) – plug-in card
Host Bus PCIe 4.0 x8
Storage Controller
Interface SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Data Transfer Rate 24 Gbit/s
Buffer Size 4 GB
Supported Devices Hard drive, disk array (RAID), solid state drive
Max Storage Devices Qty 256
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Expansion / Connectivity
Interfaces SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) (internal)
