31305-2 Technical Specifications

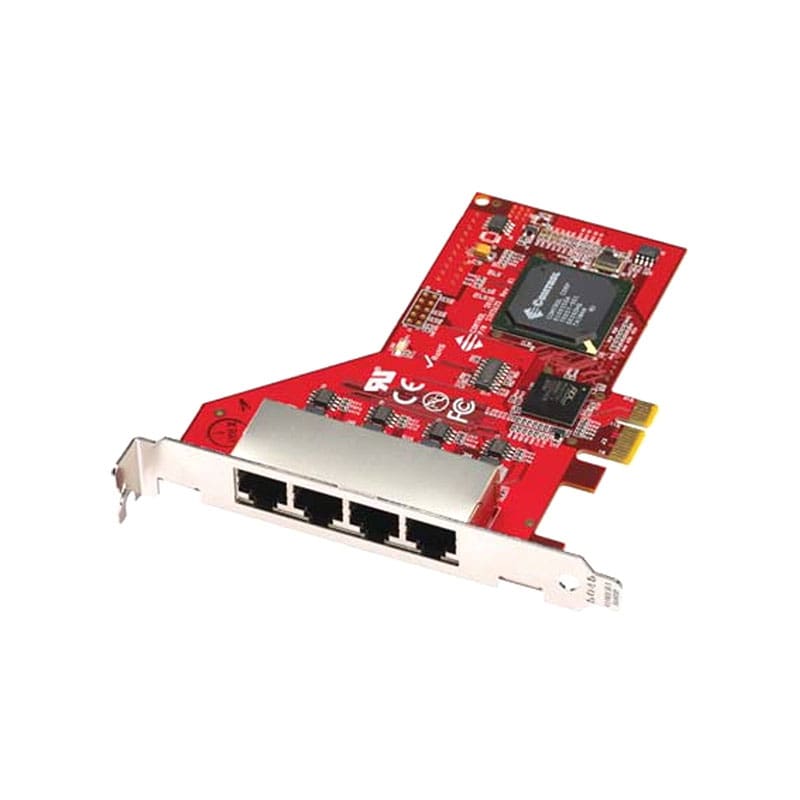

Comtrol RocketPort EXPRESS 4J serial adapter PCIe RS-232/422/485 x 4
Brand: Comtrol
Product Line: Comtrol RocketPort
Model: EXPRESS 4J
Manufacturer: Comtrol
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: RS-232, RS-422, RS-485
Data Transfer Rate: 921.6 Kbps
Form Factor: Plug-in card
Host Interface: PCI Express x1
Product Type: Serial adapter
Expansion Slots
Compatible Slots Required: 1 x PCI Express x1
Connectivity
Interface Provided: 4 x RS-232/422/485 – RJ-45
Port Quantity: 4
Network & Adapter Ports: RS-232/422/485
Technical Information
Max Operating Temperature: 140 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 4 inch
Weight: 2.89 ounce
Depth: 4.7 inch
Certifications & Listings
Compliant Standards: FCC Part 15 B, RoHS
