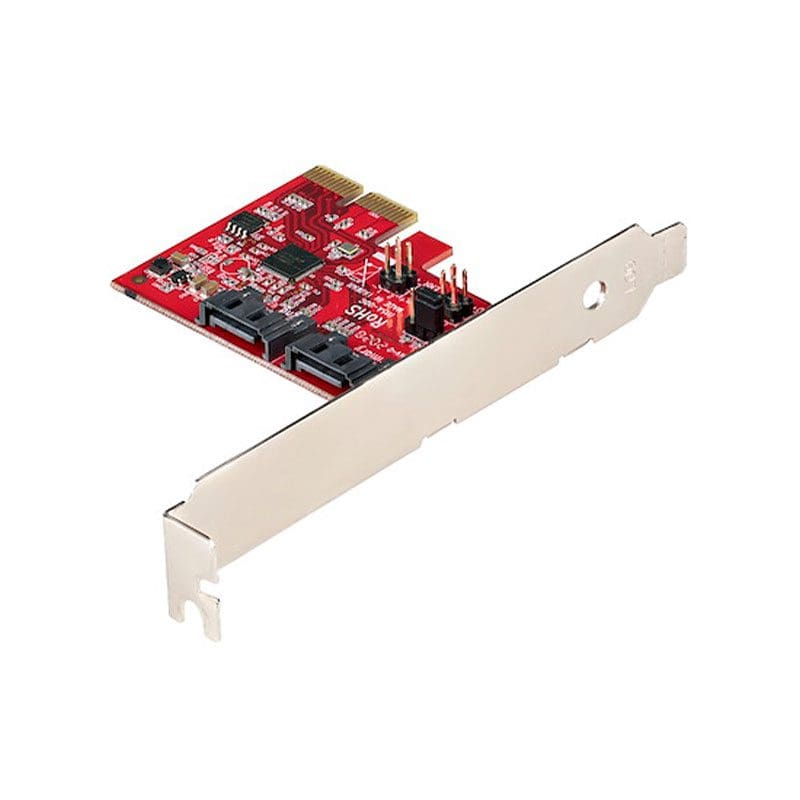

2P6GR-PCIE-SATA-CARD Technical Specifications
StarTech SATA PCIe Card, 2 Ports, SATA RAID, 6Gbps, PCI Express to SATA
Manufacturer
StarTech.com
Brand
StarTech.com
Product Line
StarTech.com
Model
2 Port PCIe SATA Expansion Card – 6Gbps – Full/Low Profile – PCI Express to SATA Adapter/Controller – ASM1062R SATA RAID – PCIe to SATA Converter
Packaged Quantity
1
General
Product Type
Storage controller
Processor
Processor Number
ASM1062R
Manufacturer
ASMedia
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 2.0 x2
Low Profile
Low profile
Data Transfer Rate
6 Gbit/s
Interface
SATA 6Gb/s
Supported Devices
Hard drive, Solid state drive
RAID Level
JBOD, RAID 0, RAID 1
Interface Provided
Interfaces
2 x SATA 6Gb/s – SATA (internal)
Power Device
Type
None
System Requirements
OS Required
Apple MacOS X 10.10 – 12, Linux 2.6.32 or later, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Miscellaneous
Color
Red
Color Category
Silver
Included Accessories
Low-profile bracket
Compliant Standards
Plug and Play, RoHS
Features
4Kn drive compatible, ATAPI support, Bootable, S.M.A.R.T. support, Support port multiplier, TRIM support
Dimensions & Weight
Width
0.9 inch
Depth
2.7 inch
Height
4.8 inch
Weight
1.23 ounce
Dimensions & Weight (Shipping)
Shipping Width
5.6 inch
Shipping Depth
6.7 inch
Shipping Height
1.2 inch
Shipping Weight
4.44 ounce
Service & Support
Type
Limited lifetime warranty
Service & Support Details
Service & Support
Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature
32 degree Fahrenheit
Max Operating Temperature
185 degree Fahrenheit
Humidity Range Operating
20 – 80%
