2301600-R Technical Specifications

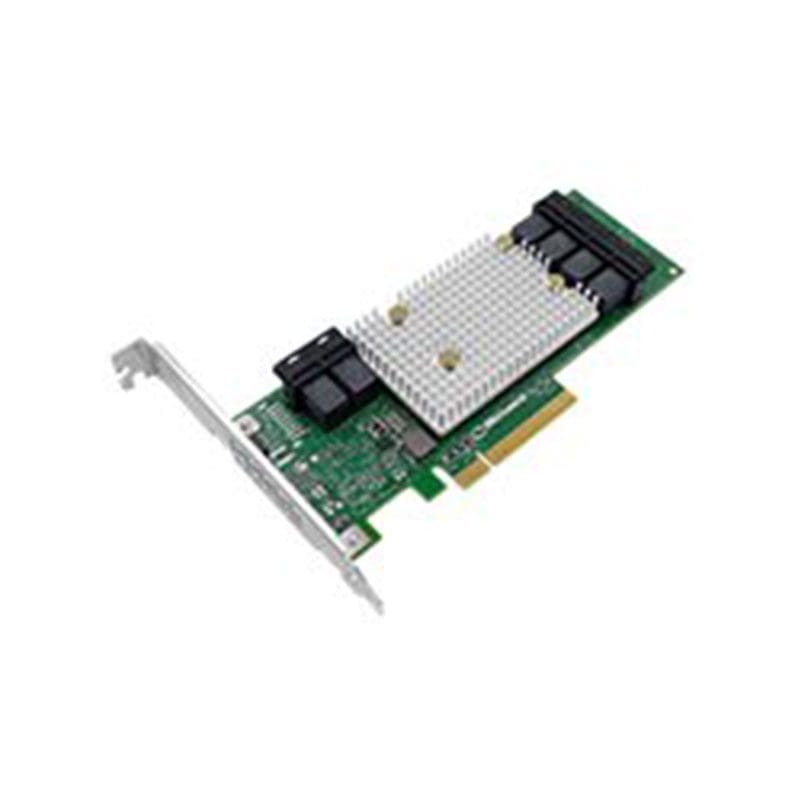

Microchip Adaptec SmartHBA 2100 24i Storage Controller (RAID) SATA 6Gb/s / SAS 12Gb/s PCIe 3.0 x8
Brand : Microchip
Manufacturer Part Number : 2301600-R
Interface SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Supported Devices Hard drive, tape drive, disk array (RAID), solid state drive
Channel Qty 24
Max Storage Devices Qty 256
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
General
Device Type Storage controller (RAID) – plug-in card – low profile
Host Bus PCIe 3.0 x8
Expansion / Connectivity
Interfaces 6 x SATA 6Gb/s / SAS 12Gb/s – 4 x Mini SAS HD (SFF-8643) (internal)
