2293901-R Technical Specifications

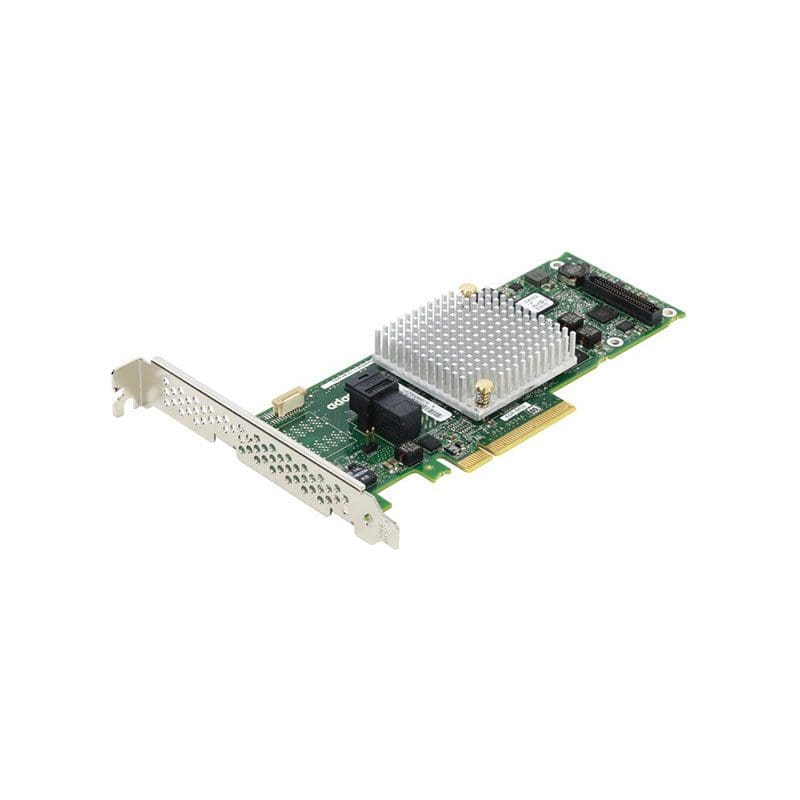

Microsemi 8405E SAS Controller 12Gb/s SAS PCI Express 3.0 x8 Plug-in Card RAID Supported 0, 1, 10 RAID Level 4 Total SAS Port(s) PC, Linux 512 MB
Manufacturer Part Number 2293901-R
Brand Name Microsemi
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
10
Memory
Cache Memory 512 MB
Interfaces/Ports
Total Number of SAS Ports 4
SAS Connector Details 1 SFF-8643
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Linux
Environmentally Friendly Yes
Environmental Certification RoHS
