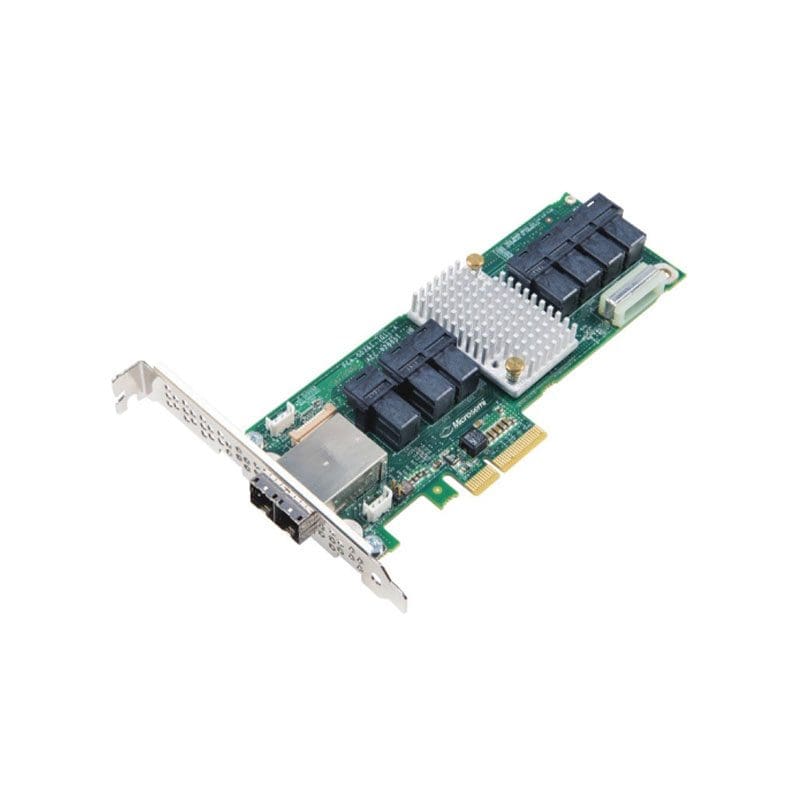

2283400-R Technical Specifications
Microsemi Adaptec 12Gb/s SAS Expander Card
Manufacturer Part Number 2283400-R
Brand Name Microsemi Adaptec
Product Type SAS Controller Expander
Technical Information
Host Interface PCI Express x4
Controller Type 12Gb/s SAS
Interfaces/Ports
Total Number of SAS Ports 36
Number of SAS Ports (Internal) 28
Number of SAS Ports (External) 8
SAS Connector Details 7 SFF-8643
2 SFF-8644
Physical Characteristics
Height 2.5″
Depth 6.6″
Form Factor Plug-in Card
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
