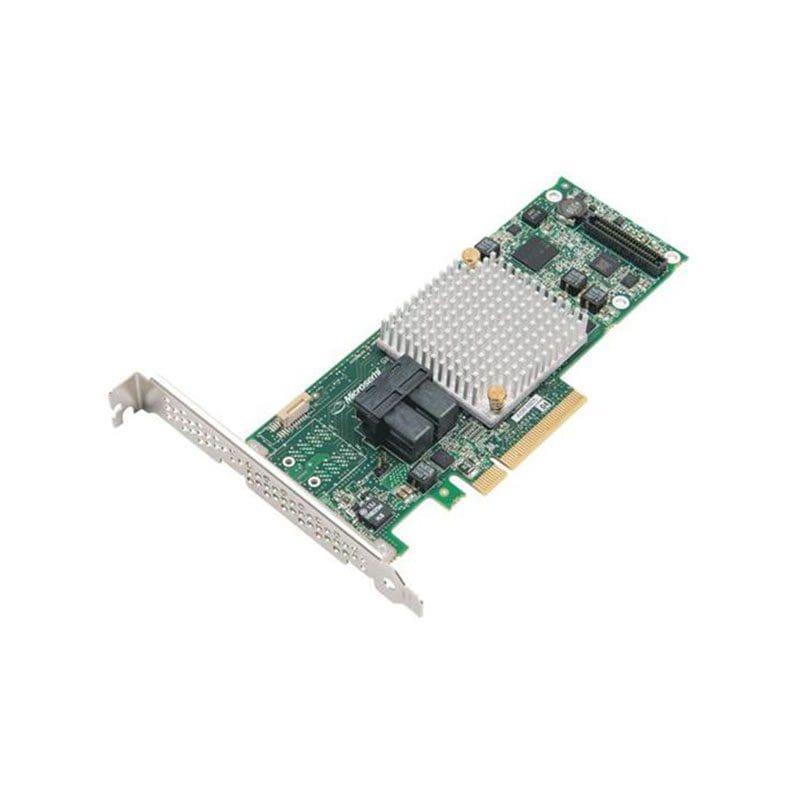

2277500-R Technical Specifications
Adaptec Series 8 RAID Adapters
Manufacturer Part Number 2277500-R
Brand Name Microsemi
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
1E
5
6
10
50
60
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8643
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
SPARC
Environmentally Friendly Yes
Environmental Certification RoHS
