2258800-R Technical Specifications

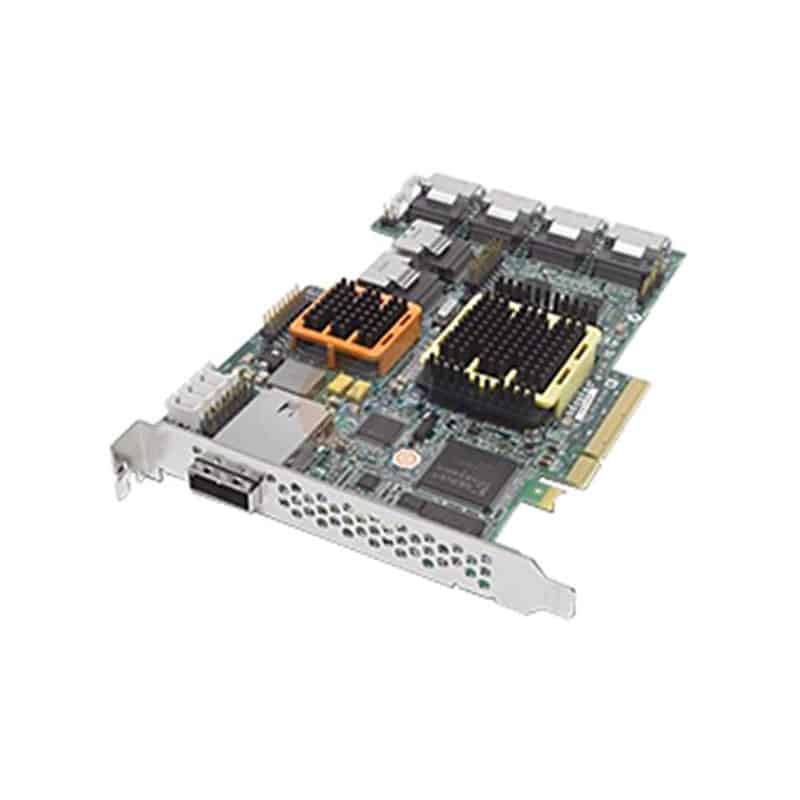

Adaptec 52445 28-Channel SATA-300/SAS 300MBps RAID Storage Controller
Manufacturer Part Number 2258800-R
Brand Name Microsemi
Product Type SAS Controller
Technical Information
Host Interface PCI Express x8
Controller Type Serial ATA/300
RAID Supported Yes
RAID Levels 0
1
1E
5
5EE
6
10
50
60
JBOD
Interfaces/Ports
Total Number of SAS Ports 7
Number of SAS Ports (Internal) 6
Number of SAS Ports (External) 1
SAS Connector Details 6 SFF-8087
1 SFF-8088
Physical Characteristics
Height 4.6″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
SPARC
Environmentally Friendly Yes
Environmental Certification RoHS
