2252900-R Adaptec PCI-E X8 SAS-SATA W/256MB Cache Controller
2252900-R Overview

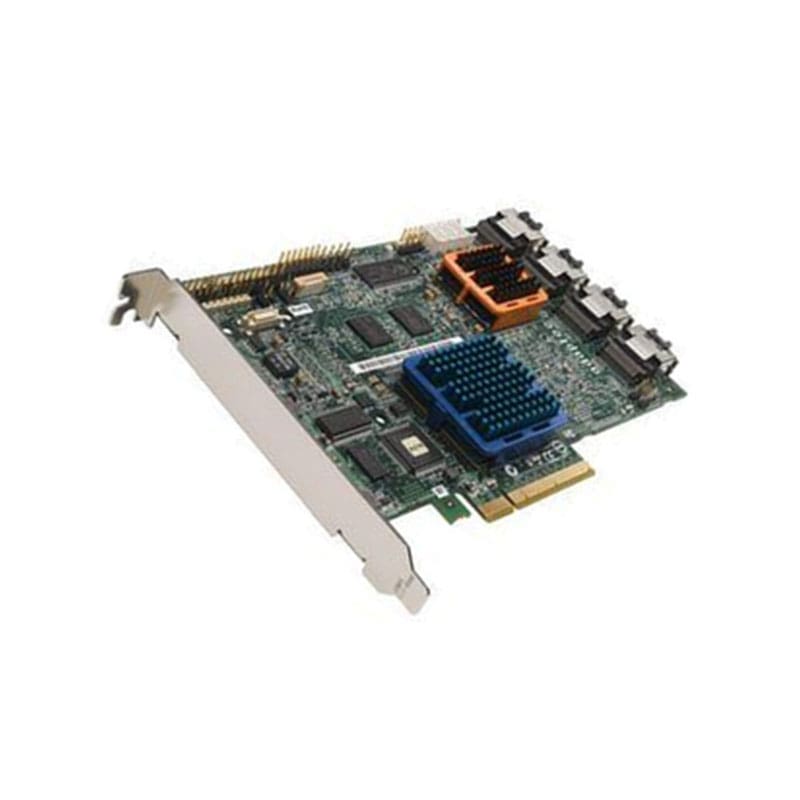

The Adaptec 2252900-R PCI-E X8 SAS-SATA W/256MB Cache Controller Card is a hardware device designed to connect SATA or SAS hard drives to a computer’s PCI-Express slot. This card provides an efficient way of managing multiple hard drives in a system while also increasing their overall performance.
The Adaptec 2252900-R PCI-E X8 SAS-SATA W/256MB Cache Controller Card is a high-performance hardware device that connects to a computer’s PCI-Express slot. This device allows for multiple SATA or SAS hard drives to be connected and managed by a single controller card. The card has a built-in cache memory of 256MB, which can be used to speed up data transfers between the hard drives and the computer.
$60
2252900-R Technical Specifications
Adaptec Raid 31605 16 PortS PCI-Express X8 SAS-SATA Raid Controller Card With Complete Kits And 256MBCache With Battery
Manufacturer: Adaptec
Part Number or SKU# 2252900-R
Product Type : Controller
Product Name : SAS-SATA
Technical Specifications
Host Interface: PCI-Express X8
Data Transfer Rate: Up To 300mbps Per Port
Raid Levels: 0, 1, 1e, 5, 5ee, 6, 10, 50, 60, Jbod
Drive Support: Up To 16 X Physical
Platform Support: Pc, Unix, Solaris
Standard Memory: 256mb Ddr2
Interfaces/ports: 4 X Sff-8087 Sas 300 Serial Attached Scsi Internal
Form Factor: Pci Express X8 Plug-in Card
Dimensions
Width: 6.6 Inch
Height: 4.6 Inch
