Refurbished 212692-001 Technical Specifications

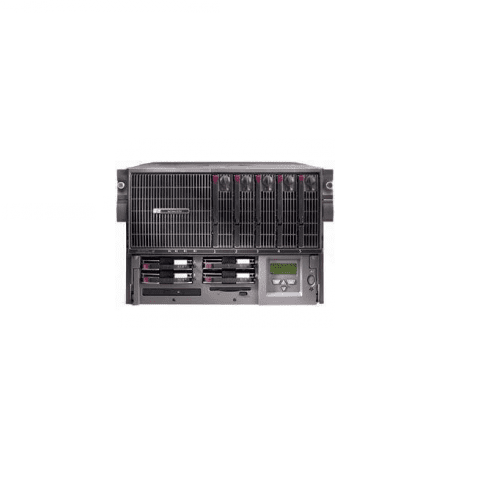

HP Proliant Dl760r01 4 X Xeon 900MHz 2GB RAM 24x Cd-ROM FDD 10/100 Nic 7u Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 212692-001
Product Name: Proliant Dl760 G1 7u-Rack Server
PROCESSOR & CHIPSET:
Processor Type: Intel Pentium 3 Xeon 900 Mhz
Installed Qty: 4
Max Supported Qty: 8
Processor Upgradability: Upgradable
Processor Sockets Supported: Secc330
Data Bus Speed: 100 MHZ
CACHE MEMORY:
Type: L2 Cache – Advanced Transfer Cache
Installed Size: 8 Mb (Installed) / 16 Mb (Max)
MEMORY:
Installed Ram: 2 Gb
Technology: Sdram – Ecc
Memory Speed: 100 Mhz
Form Factor: Dimm 168-Pin
Upgrade Rule: Max 1 Gb Module
Maximum Ram: 16 Gb
Installed L2 Cache Memory: 8 Mb
Installed Video Memory: 2 Mb
STORAGE:
Floppy Drive: 3.5 1.44 Mb Floppy
Hard Drive: None.
Optical Storage Type: Cd-Rom – Ide
Read Speed: 24x
Media Load Type: Tray
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Integrated – Pci
Controller Interface Type: Ultra2 Wide Scsi
Channel Qty: 2
Raid Level: Raid 0, Raid 5, Raid 10
DISPLAY & GRAPHICS:
Graphics Controller Type: Pci – Integrated
Video Memory: 2 Mb Sdram
Supported Display Graphics: Vga (640×480), Xga (1024×768), Svga (800×600), Sxga (1280×1024)
NETWORK & COMMUNICATION:
Hewlett-Packard Nc3134 Fast Ethernet Ieee 802.3u
Networking: Network Adapter – Pci Hot-Plug – Plug-In Card
Data Link Protocol: Ethernet, Fast Ethernet
Network / Transport Protocol: Tcp/Ip, Ipx/Spx
