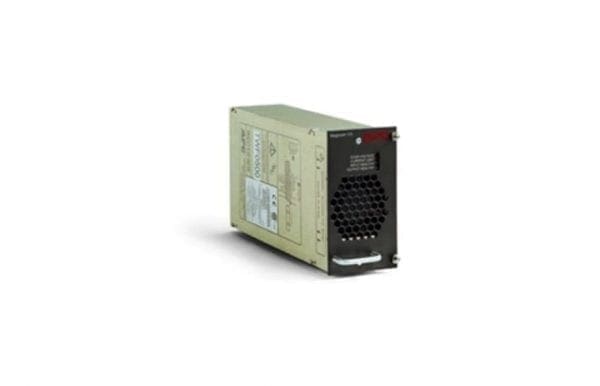

1TWF0500H54B Technical Specifications
APC DC RECTIFIER, 500 WATT, 54VDC, WIDE INPUT, FULL SIGNALS, BLACK
Manufacturer :APC
Brand :APC
Packaged Quantity :1
Output
Output Voltage Note
48 – 58V operating voltage
Output Connection Type
Hot plug blind mate rear connector
Input
Input frequency
50/60 Hz
Input voltage range for main operations
88 – 264V
Number of Power Cords 1
Input Overcurrent Protection
Integral fuse in each rectifier
Maximum Input Current 6.0A
Input Power Factor at Full Load 0.99
Communications & Management
Form C Relay Alarms
Output OK
Visible Alarms
Output OK
Physical
Maximum Height
5.0inches (127MM, 12.7CM)
Maximum Width
2.5inches (64MM, 6.4CM)
Maximum Depth
9.34inches (237MM, 23.7CM)
Net Weight
3.9lbs. (1.77KG)
Shipping weight
4.9lbs. (2.23KG)
Shipping Height
9.2inches (234MM, 23.4CM)
Shipping Width
5.5inches (140MM, 14.0CM)
Shipping Depth
13.3inches (338MM, 33.8CM)
Color Grey
Environmental
Operating Temperature
-40 – 149 °F (-40 – 65 °C)
Operating Relative Humidity
0 – 85 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-40 – 65 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-30000ft (0-9000meters)
