1KPGF Technical Specifications

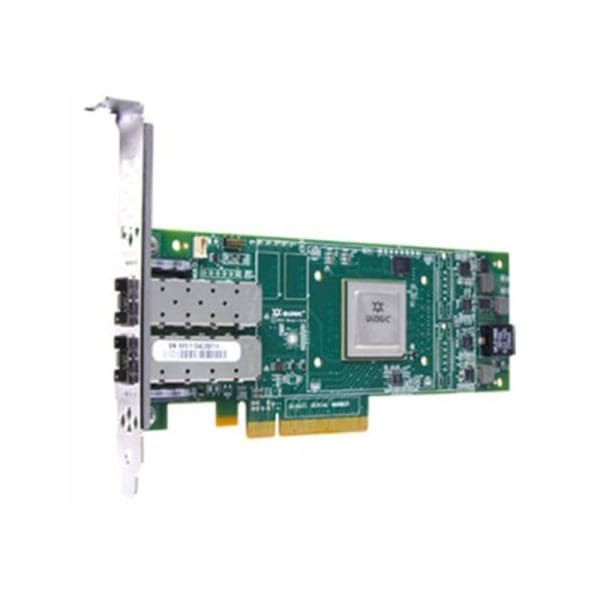

Dell Sanblade 16GB PCI-E Dual Port Fiber Channel HBA
Brand: Dell
MPN : 1KPGF
Type: Controller
Sub-Type: Fiber Channel
Interface: Dual-port Fiber Channel HBA
Transfer Rate: 16 Gbps per port
Data Transfer: 8Gbps per port
Bus Type: PCI Express (PCIe) 3.0 x8
Form Factor: Full-height bracket
Operating Systems: Windows Server, Linux, VMware vSphere, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server
Driver Support: Emulex OneCommand Manager and OneConnect Universal (UCNA) driver
Maximum Transfer Distance: 10 km
Buffer Size: 256 MB
Operating Temperature: 32° to 131°F (0° to 55°C)
Operating Humidity: 20% to 80% non-condensing
