1FV90AA Technical Specifications

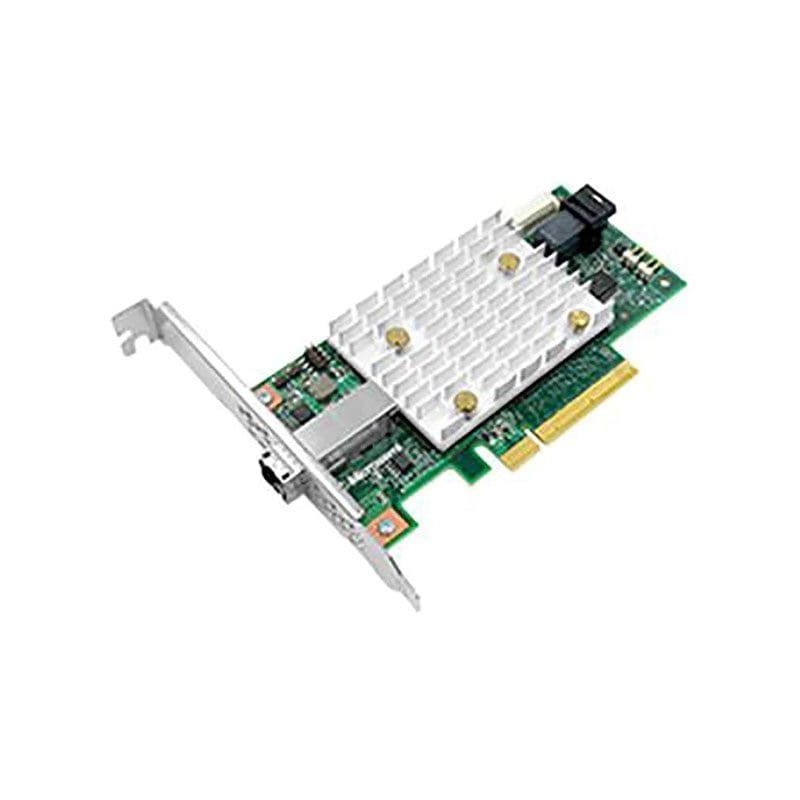

MicroSemi SmartHBA2100-4i4e Storage Controller (RAID) SATA 6Gb/s / SAS
Manufacturer
Hewlett Packard Non Smart Buy
Brand
Microsemi
Product Line
MicroSemi
Model
SmartHBA2100-4i4e
Packaged Quantity
1
General
Product Type
Storage controller (RAID)
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 3.0 x8
Low Profile
Low profile
Data Transfer Rate
12 Gbit/s
Interface
SATA 6Gb/s / SAS 12Gb/s
Channel Qty
8
Supported Devices
Disk array (RAID), Hard drive, Solid state drive, Tape drive
Max Storage Devices Qty
256
RAID Level
RAID 0, RAID 1, RAID 10, RAID 5
Interface Provided
Interfaces
1 x SATA 6Gb/s / SAS 12Gb/s – 4 x Mini SAS HD (SFF-8643) (internal), 1 x SATA 6Gb/s / SAS 12Gb/s – 4 x Mini SAS HD (SFF-8644) (external)
Power Device
Type
None
System Requirements
OS Required
CentOS, Citrix XenServer, Debian Linux, FreeBSD, Microsoft Windows, Red Hat Linux, SunSoft Solaris, SuSe Linux, Ubuntu, VMware ESXi
Miscellaneous
Color Category
Green
Included Accessories
Low-profile bracket
MTBF
1,400,000 Hours
Compliant Standards
C-Tick, FCC, KCC, RoHS, UL, VCCI
Features
Native Command Queuing (NCQ), S.M.A.R.T. support, SCSI Enclosure Services 2 (SES2), SCSI Enclosure Services 3 (SES3)
Dimensions & Weight
Depth
6.6 inch
Height
2.5 inch
Service & Support
Type
3-year warranty
Service & Support Details
Service & Support
Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature
32 degree Fahrenheit
Max Operating Temperature
131 degree Fahrenheit
Compatibility
Compatible With
HP Workstation Z4 G4, Z6 G4, Z8 G4
