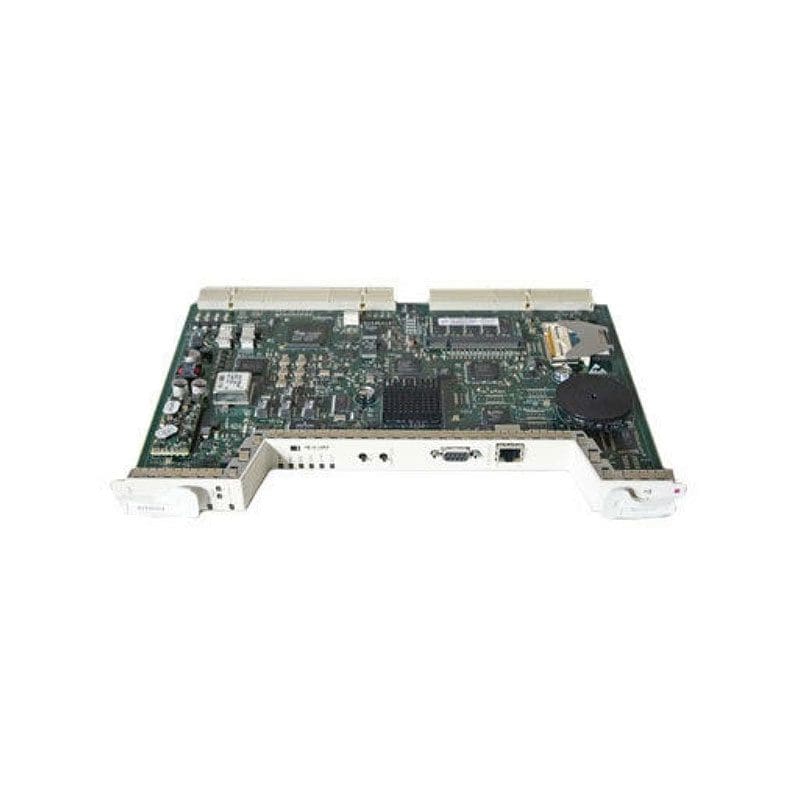

Refurbished 15454-TCC2P-K9 Technical Specifications
Cisco Timing, Communication and Control Card Version 2 plus control processor
Brand :Cisco
Product Line :Cisco Timing, Communication, and Control Card
Model :Version 2 plus
Packaged Quantity :1
Processor
Clock Speed :400 megahertz
RAM
Installed Size :256 megabyte
Flash Memory
Installed Size :256 megabyte, 256 megabyte
Networking
Type :Control processor
Form Factor :Plug-in module
Connectivity Technology :Wired
Status Indicators :Fail, Link/activity, Power, Status, Synchronization loss
Interface Provided
Interfaces :1 x management, 1 x management – DB-9
Slot Required
Compatible Slots :1 x expansion slot
Miscellaneous
Refurbished :Refurbished
Compliant Standards :EN 60950, EN50081-1, EN55022, EN55024, IEC 60950, UL 1950
Dimensions & Weight
Width :0.7 inch
Depth :9 inch
Height :12.6 inch
Weight :1.98 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :149 degree Fahrenheit
Humidity Range Operating :5 – 95%
Compatibility
Compatible With :Cisco ONS 15454 SONET Multiservice Provisioning Platform
