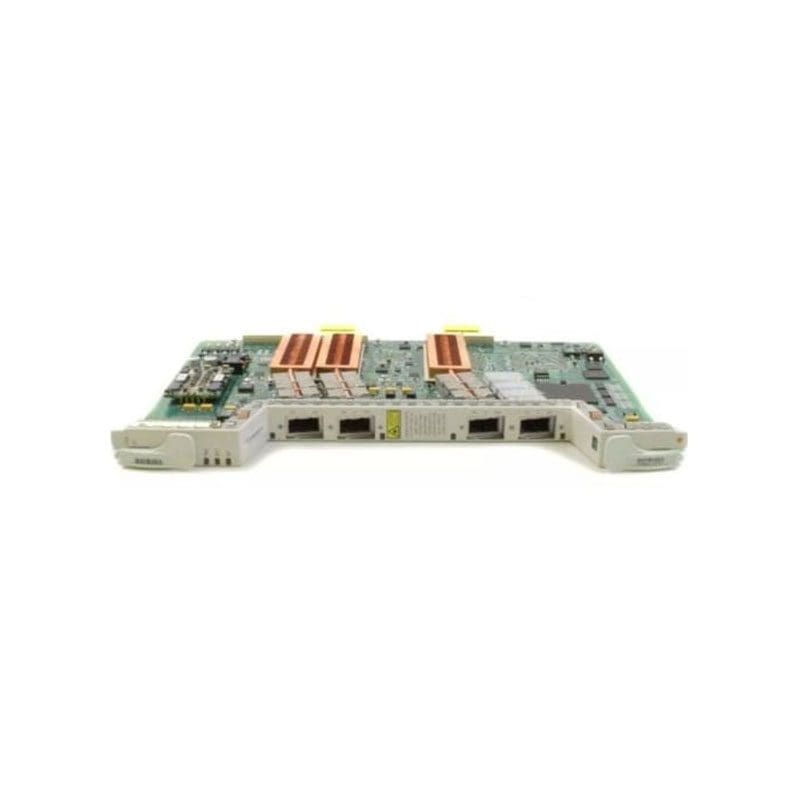

Refurbished 15454-OTU2-XP Technical Specifications
Cisco Multirate XPonder multiplexor
Brand :Cisco
Product Line :Cisco
Model :Multirate XPonder
Packaged Quantity :1
Networking
Type :Multiplexor
Form Factor :Plug-in module
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, OTU2
Data Transfer Rate :10 GBps
Status Indicators :Active, Fail, Output, Standby
Interface Provided
Interfaces :4 x 10Gb Ethernet
Power Device
Power Consumption Operational :70 watt
Miscellaneous
Refurbished :Remanufactured
MTBF :348,046 Hours
Compliant Standards :21 CFR 1040, CAN/CSA-C22.2 No. 950-95, CISPR 22, CISPR 24, CSA 60950-1, EN 300 386 V1.3.3, EN 300 386 V1.4.1, EN 60825-1, EN 60825-2, EN55022:1998, EN55024:1998, ETS300019-2-1, ETS300019-2-2, EU RoHS, FCC CFR47 Part 15, GR-1089-CORE, Issue 3, GR-1089-CORE, Issue 4, GR-63-CORE, Issue 3 (2006), ICES-003 Class A, IEC 60825-1, IEC 60825-2:2004, IEC 60950-1 First Edition, ITU-T G.664, ITU-T G.709, ITU-T G.975, TR-NWT-000332, Issue 4, Method 1, UL 60950-1, WEEE
Dimensions & Weight
Weight :2.43 lbs
Environmental Parameters
Min Operating Temperature :23 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
Compatibility
Compatible With :Cisco ONS 15454 MSTP Fixed Optical Filter Card
