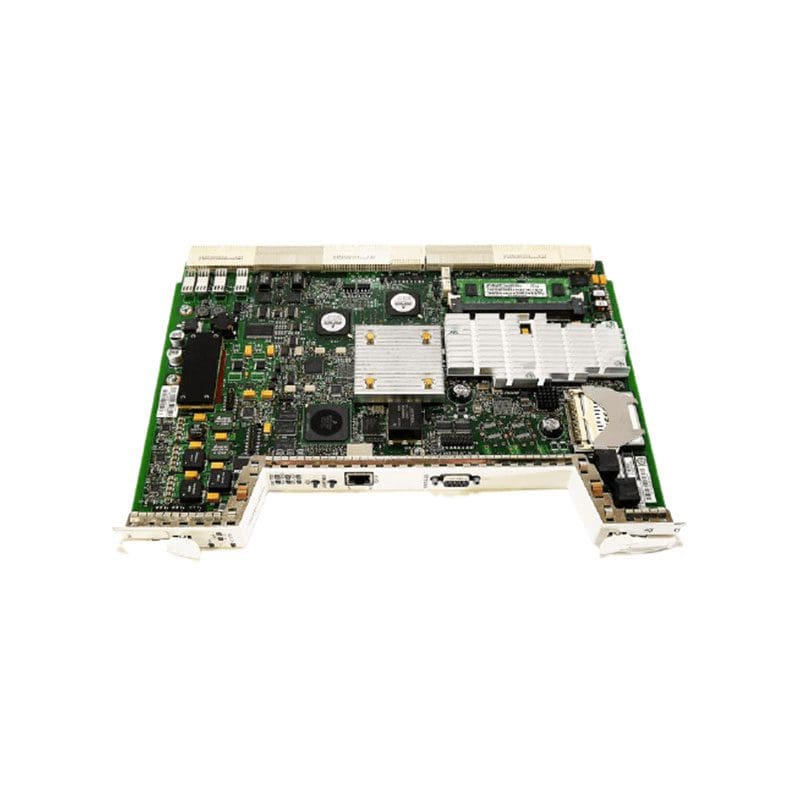

Refurbished 15454-M-TSCE-K9 Technical Specifications
Cisco Transport Shelf Controller Enhanced network monitoring device
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Transport Shelf Controller
Model :Enhanced
Packaged Quantity :1
Processor
Clock Speed :1 GHZ
RAM
Installed Size :1 GB
Flash Memory
Installed Size :4 megabyte, 4 megabyte
Networking
Type :Network monitoring device
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :PTP
Remote Management Protocol :Telnet
Status Indicators :Alarm, LAN, Link/activity, Power, System
Features :Dynamic Content Control (DCC), Multiple Spanning Tree Protocol (MSTP) support, Precision Time Protocol (PTP)
Interface Provided
Interfaces :1 x 10Base-T – RJ-45, 1 x management (RS-232) – DB-9, 1 x network – RJ-45
Power Device
Power Consumption Operational :70 watt
Miscellaneous
Compliant Standards :CISPR 22, CISPR 24, cUL, EN 60950-1, EN55022, EN55024, ETS300019-2-1 Class T1.2, ETS300019-2-2 Class T2.3, ETS300019-2-3, ETSI, FCC CFR47 Part 15, GR-1089-CORE, GR-63-CORE, ICES-003, IEC 60950-1, NEBS, UL
Dimensions & Weight
Width :0.7 inch
Depth :9 inch
Height :12.6 inch
Weight :32.8 ounce
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :149 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
Compatibility
Compatible With :Cisco ONS 15454 M6
