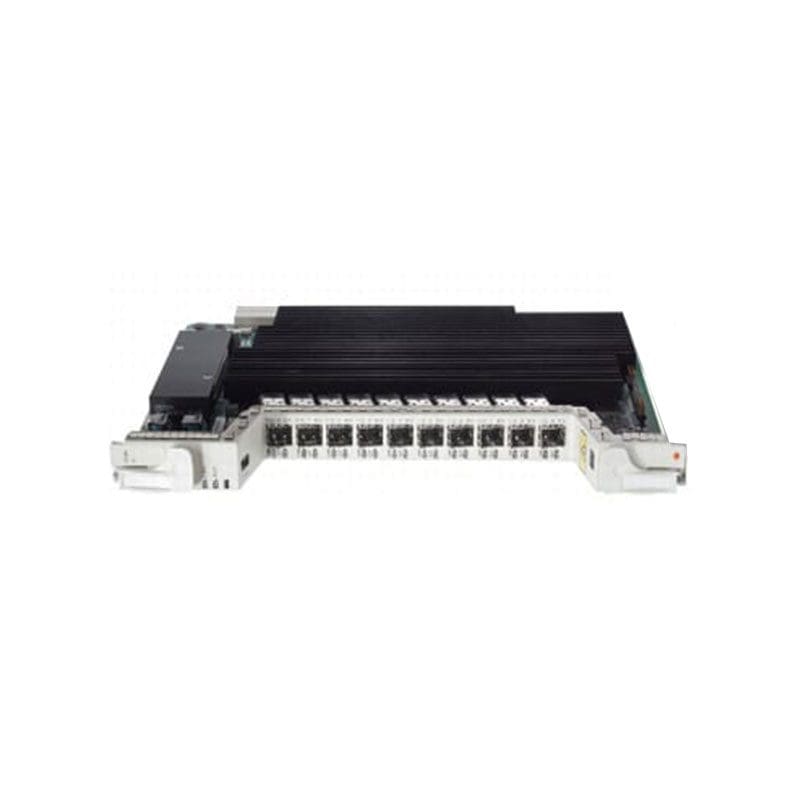

Refurbished 15454-CE-MR-10 Technical Specifications
Cisco CE Series Multirate Ethernet Card expansion module
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco CE Series
Model :Multirate Ethernet Card
Packaged Quantity :1
Capacity
Capacity :Jumbo frame size: 9600
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Fiber optic
Data Link Protocol :SONET/SDH
Remote Management Protocol :RMON, SNMP
Data Transfer Rate :1 GBps
Features :Cisco Discovery Protocol, Flow control, Full duplex capability, VLAN support, VLAN Trunking Protocol (VTP)
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3x
Ports
Qty :10
Type :Gigabit SFP
Interface Provided
Interfaces :10 x 1000Base-T – SFP (mini-GBIC)
Miscellaneous
Color Category :Silver
Refurbished :Refurbished
Compliant Standards :CISPR 22, CISPR 24, EN 60950-1, EN 61000-6-1, EN55022, EN55024, ETS 300 019-2-1 Class 1.1, ETS 300 019-2-2 Class 2.3, ETS 300 019-2-3 Class 3.1E, FCC CFR47 Part 15, GR-1089-CORE, ICES-003 issue 3, IEC 60950-1, NEBS level 3, UL/CSA60950-1, VCCI V-3
Dimensions & Weight
Width :0.7 inch
Depth :9 inch
Height :12.6 inch
Environmental Parameters
Min Operating Temperature :23 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
Compatibility
Compatible With :Cisco ONS 15454 M6
