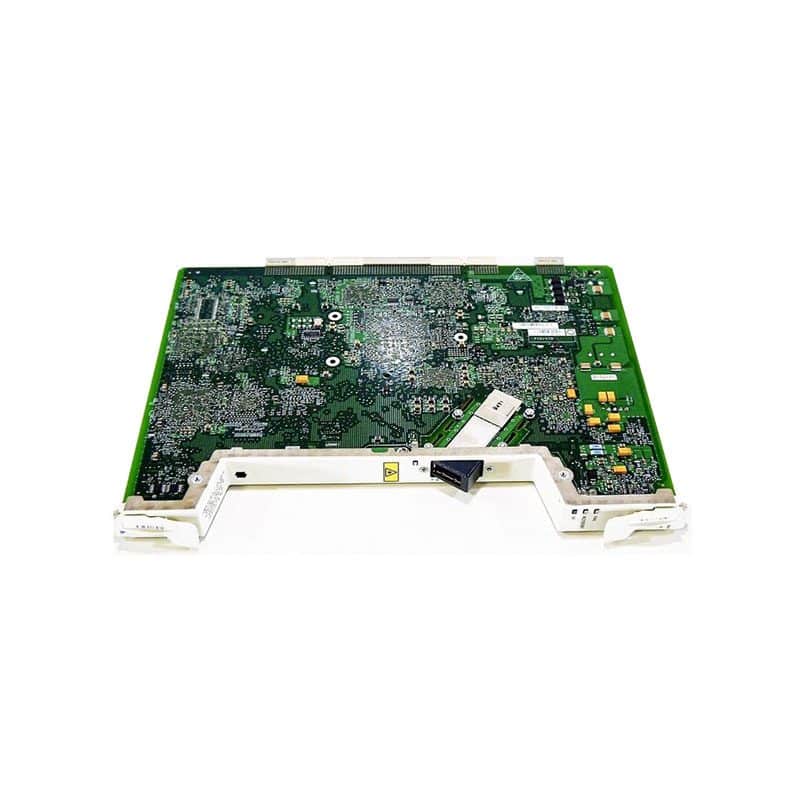

Refurbished 15454-10G-S1 Technical Specifications
Cisco Based Optics Cards expansion module
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :Based Optics Cards
Packaged Quantity :1
Line Properties
Line Rate :OC-192 SR
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Fiber optic
Data Link Protocol :SONET
Max Transfer Distance (Optical) :49.7 miles
Status Indicators :Fail, Link/activity, Standby
Interface Provided
Interfaces :1 x OC-192 – XFP
Power Device
Power Consumption Operational :40 watt
Miscellaneous
Color Category :White
Refurbished :Refurbished
Compliant Standards :21 CFR 1040, CISPR 22, CISPR 24, cUL, EN 60825-1, EN 60825-2, EN 60950-1, EN 61000-6-1, EN55022, EN55024, ETS300019-2-1, ETS300019-2-2, ETS300019-2-3, ETSI 300-386, FCC CFR47 Part 15, G.707, G.825, G.957, GR-1089-CORE, GR-253-CORE, IEC 60825-1, IEC 60825-2, IEC 60950-1, JATE, NEBS level 3, UL, UL/CSA60950-1, VCCI V-3
Dimensions & Weight
Weight :28.57 ounce
Environmental Parameters
Min Operating Temperature :23 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
Compatibility
Compatible With :Cisco ONS 15454, 15454 Configured Bay Assembly, 15454 M6, 15454 SDH, 15454 Shelf Assembly, 15454 SONET Multiservice Provisioning Platform
