10-2036-04 Technical Specifications

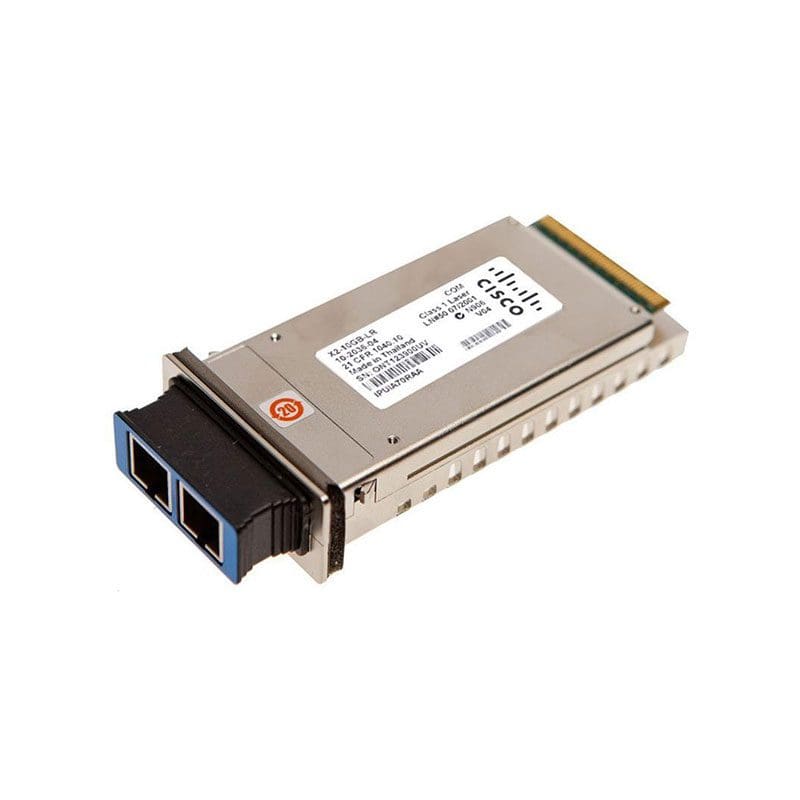

Cisco 10GBASE-LR X2 Transceiver Module
General Information
Manufacturer: Cisco
Brand: Cisco
Product Name: 10GBASE-LR X2 Module
Product Type: X2
Device Type: Transceiver Module
Form Factor : Plug-in Module
Technical Information
Application/Usage: Data Networking
Network & comunications
Connectivity Media G.652 µm Single-mode Optical Fiber
Data Transfer Rate: 10 Gbps Gigabit Ethernet
Cabling Type : Ethernet 10gbase-lr
Data Link Protocol : 10 Gigabit Ethernet
Max Transfer Distance : 10 Km
Compliant Standards : Ieee 802.3ae
Interfaces / Ports
Interfaces/Ports: 1 x 10GBase-LR
Interfaces/Ports Details: 1 x SC Duplex 10GBase-LR
Interface (bus) Type : X2
Miscellaneous
Width: 3.6 Cm
Depth: 9.1 Cm
Height: 1.3 Cm
1310-nm wavelength
Supports a link length of 10 kilometers
