0TS1303 Technical Specifications

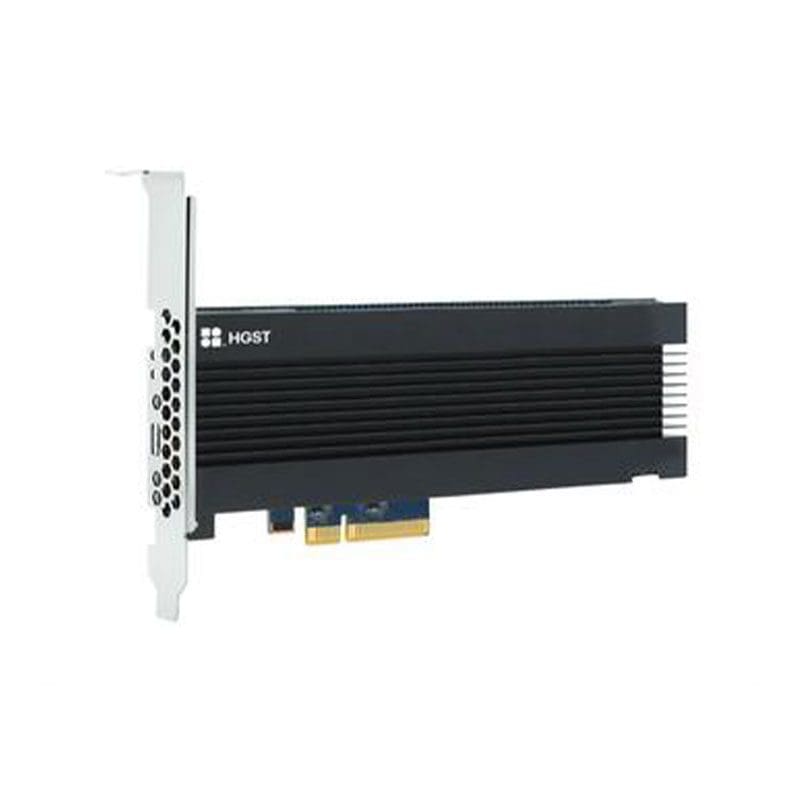

Hgst Ultrastar SN260 3.2TB PCIE 3.0 X8 Nvme 1.2 HH-HL ADD-IN Card Solid State Drive
GENERAL INFORMATION :
Brand : Hgst
Part : 0TS1303
Product Line : Ultrastar Sn260
Product Type : Solid State Drive (SSD)
Product Name : Ultrastar Sn260 3.2TB Solid State Drive
KEY FEATURES :
Storage Capacity : 3.2 TB
Interface : Pcie 3.0 X8 NVME 1.2
Form Factor : Hh-Hl Add-In Card
Mtbf : 2 Million Hours
PERFORMANCE :
Sequential Read (MAX, 128K) : 6170 MBPS
Sequential Write (MAX, 128K) : 2200 MBPS
Random Read Iops (MAX, 4K) : 1,200,000 IOPS
Random Write Iops (MAX, 4K) : 200,000 | 75,000 IOPS
Mixed (70/30 R/W, RANDOM 4K) : 580,000 | 240,000 IOPS
