0F29553 Technical Specifications

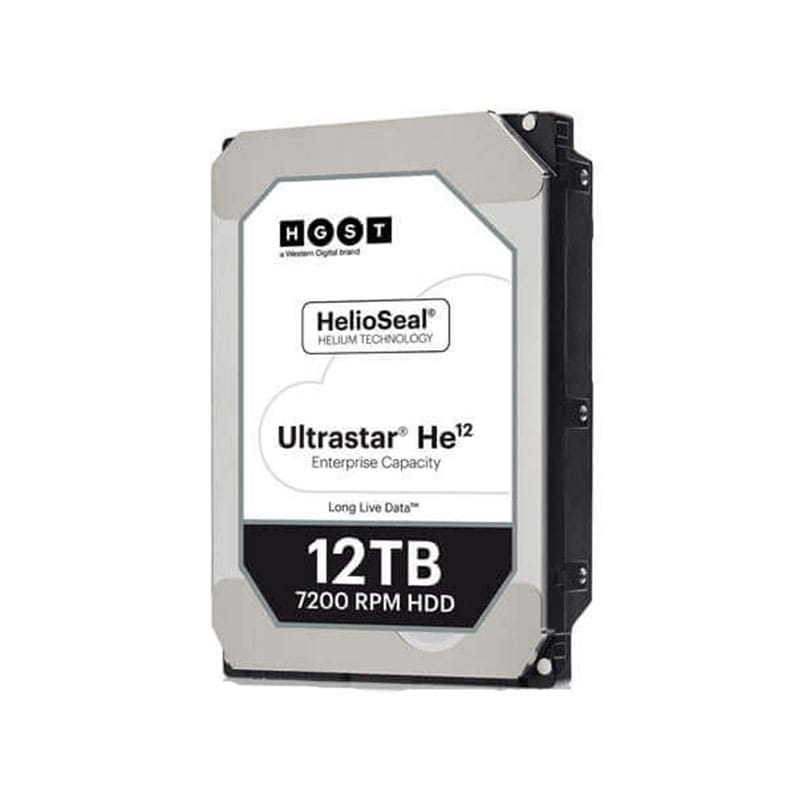

Western Digital Ultra Star 12TB 7200RPM SAS 12Gbps Hard Drive
Brand : Western Digital
Part : 0F29553
Type: Hard Disk Drive (HDD)
Sub-Type: SAS-12GBPS
RPM: 12TB-7.2K
Product Line : Ultra star
Product Series : Ultra star DC HC520
Product Name : Ultra star DC HC520 12TB Enterprise Hard Drive.
Applications / Environments
Enterprise And Data Center Applications Where Capacity Density, Power Efficiency And Reliability Are Paramount
Cloud & Hyperscale Storage
Massive Scale-Out (Mso), High-Density Data Centers
Distributed File Systems
Bulk Storage Using Object Storage Solutions Like Ceph™ And Open stack Swift
Primary And Secondary Storage For Hadoop® To Support Big Data Analytics
Centralized Video Surveillance
Ideal For All Mainstream Enterprise Capacity Applications
Technical Features
Storage Capacity : 12 TB
Enclosure : Internal
Max. Areal Density : 864 GBITS/SQ. IN
Interface : SAS-12GBPS
Drive Dimensions : 3.5 Inch
Mtbf : 2.5 Million Hours
Drive Performance
Interface Transfer Rate : 1200 MBPS
Sustained Transfer Rate : 243 MBPS (Read), 255 MBPS (Write)
Seek Time (Read, Typical) : 8.0 MS
Seek Time (Write, Typical) : 8.6 MS
Average Latency : 4.16 MS
Buffer : 256 MB
Rotational Speed : 7.2K RPM
