0A89430 Technical Specifications

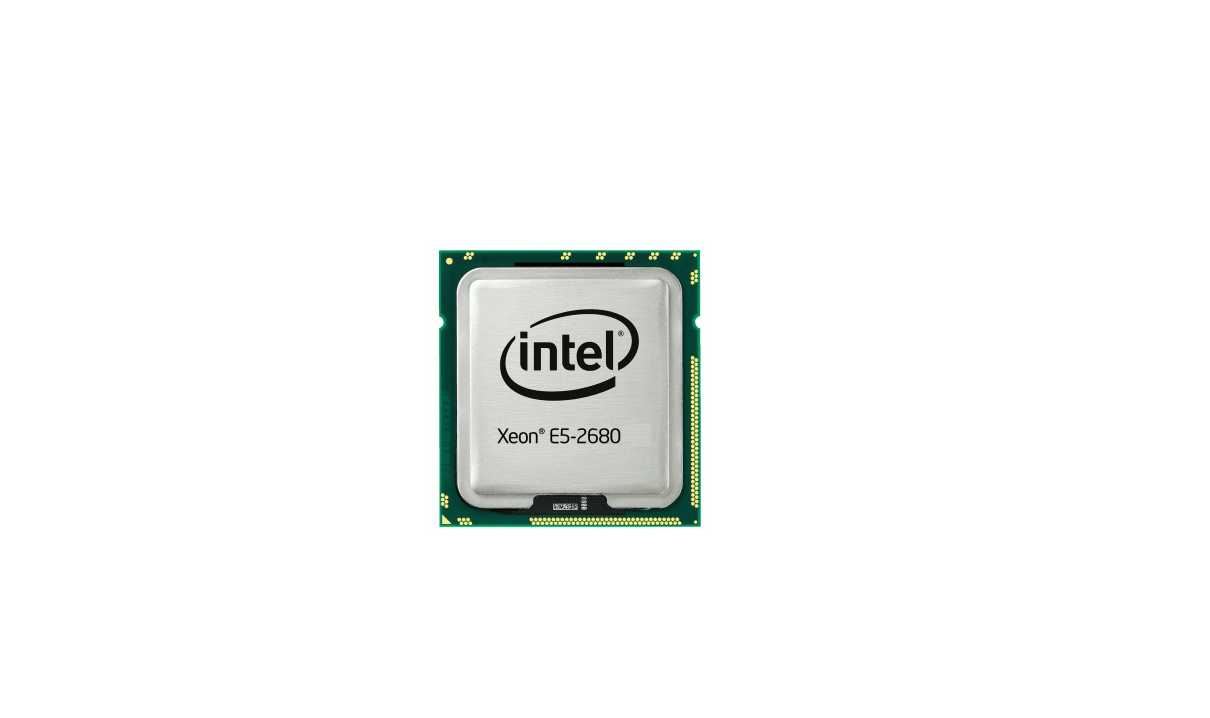

Lenovo Intel Xeon 8 Core E5 2680 2.7GHz 20MB L3 Cache 8gt S Qpi Socket Fclga 2011 32nm 130w Processor
PRODUCT DETAILS
Processor name :Intel® Xeon® E5
Processor frequency: 2.7 GHz
Processor cores: 8
Processor socket: Socket R (LGA 2011)
Component for: Server/Workstation
Processor lithography: 32 nm
Processor model: E5-2680
Processor threads: 16
System bus rate: 8 GT/s
Processor operating modes: 64-bit
Processor cache: 20 MB
Processor cache type: L3
Stepping: C2
CPU multiplier (bus/core ratio): 35
Processor boost frequency: 3.5 GHz
Bus type: QPI
Number of QPI links: 2
Maximum internal memory supported by processor: 750 GB
Memory types supported by processor: DDR3-SDRAM
Memory clock speeds supported by processor: 800,1066,1333,1600 MHz
Memory bandwidth supported by processor (max): 51.2 GB/s
Memory channels supported by processor: Quad
ECC supported by processor: Yes
VID Voltage Range: 0.60 – 1.35 V
