06G-P4-2061-KR Technical Specifications

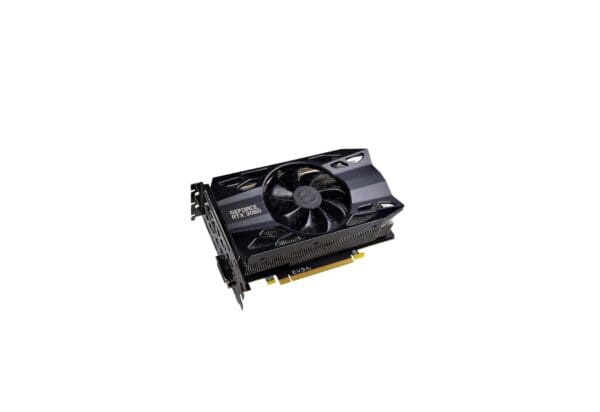

EVGA GeForce RTX 2060 XC Black Gaming 6GB GDDR6 Boost Clock 16
Model
Brand
EVGA
Model
06G-P4-2067-KR
Interface
Interface
PCI Express 3.0
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce RTX 20 Series
GPU
GeForce RTX 2060
Boost Clock
1755 MHz
CUDA Cores
1920
Memory
Effective Memory Clock
14000 MHz
Memory Size
6GB
Memory Interface
192-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.5
Ports
HDMI
1 x HDMI 2.0b
Multi-Monitor Support
3
DisplayPort
1 x DisplayPort 1.4
DVI
1 x Dual-Link DVI-D
Details
Max Resolution
7680 x 4320
Virtual Reality Ready
Yes
Cooler
Double Fans
Operating Systems Supported
Windows 10 64-bit, Windows 7 64-bit
Thermal Design Power
160W
System Requirements
500-Watt or greater power supply
PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot
Power Connector
One available 8-pin PCIe power dongle
Dual-Link DVI Supported
Yes
HDCP Ready
2.2
Feature
Features
NVIDIA Ansel
Real-Time Ray Tracing
NVIDIA GeForce Experience
NVIDIA Highlights
NVIDIA G-SYNC Compatible
Game Ready Drivers
Microsoft DirectX 12 API, Vulkan API, OpenGL 4.5
NVIDIA GPU Boost
Built for EVGA Precision X1
