05-50075-01 Technical Specifications

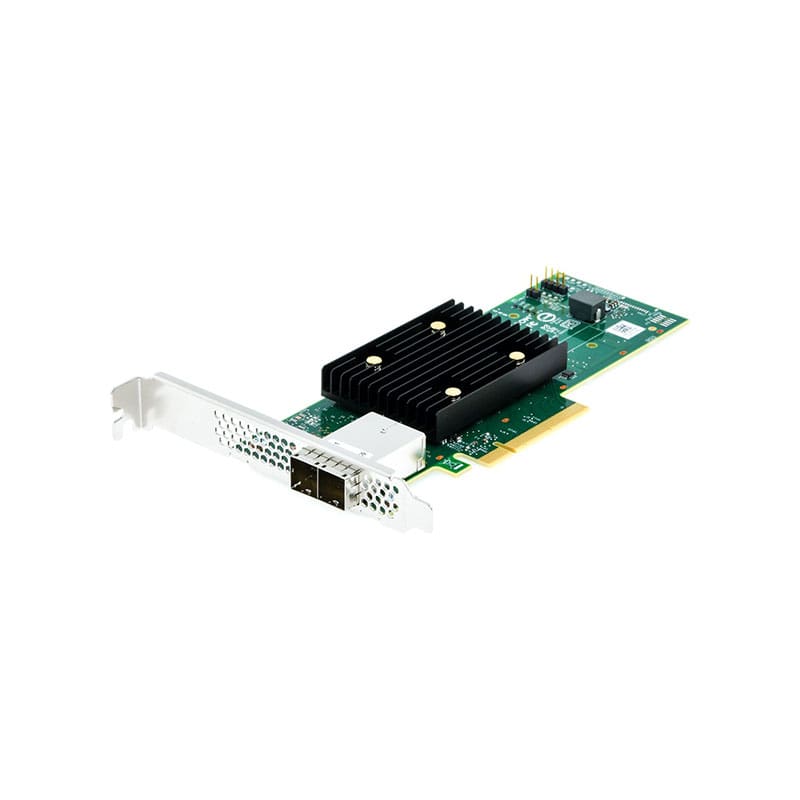

Broadcom 8-Ports 12GBPS SAS/SATA/PCI-E (NVMe) Tri-Mode HBA
Manufacturer: Broadcom
Part Number or SKU# 05-50075-01
Device Type: Controller
Technical Information
Port Count: 16 External
Connectors: 4 X4 Sff-8644
Host Interface: X8 Pcie Gen 4.0
Storage Interface: 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)
Management Utilities
Lsi Storage Authority (lsa)
Storcli (command-line Interface)
Hii (uefi Human Interface Infrastructure)
Mtbf: 5,000,000 Hours At 40°c
Operating Conditions
Operating: 0°c To 55°c, 5% To 90% Non-condensing
Storage: -45°c To +105°c, 5% To 95% Non-condensing.
Typical Power: 8.74w
Operating Voltage: 12v ±8%, 3.3v ±9%
Dimensions: 6.600 In. × 2.712 In. (167.65 Mm × 68.90 Mm)
