05-50008-00 Technical Specifications

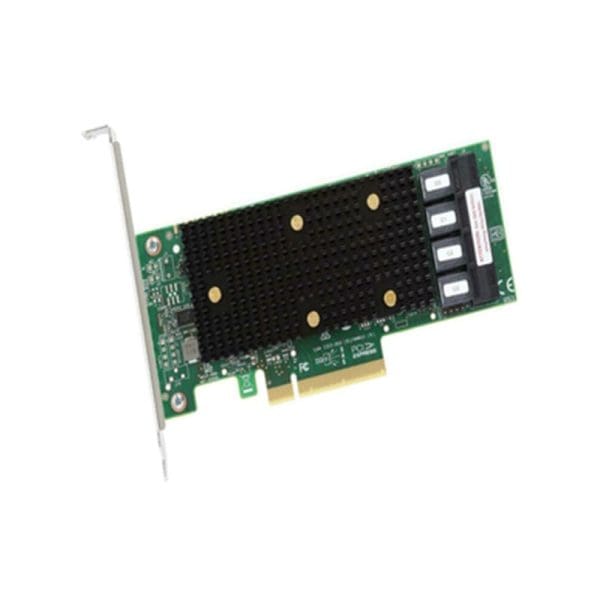

Broadcom 12GBPS SAS/SATA Tri-mode X8 Lane PCI-Express 3.1 Host Bus Adapter
Manufacturer: Broadcom
Part Number or SKU# 05-50008-00
Device Type: Controller
Technical Information
Host Bus Type: X8 Lane Pci Express® 3.1
Devices Supported Sas/sata: 1024, Nvme: 24
Internal Connectors: 4 Mini-sas Hd X4 Sff-8643
Internal Ports: 16
Operating Temperature: 10° To 55° C
Operating Voltage: +12v +/-8%, 3.3v +/-9%
Os Support: Microsoft Windows, Linux, Vmware.
Pci Power Typical: 11.95w
Cable Support: Passive Copper
i/o Controller: Sas3416
mtbf : 4,500,000 Hours At 40° C
