05-25708-00 Technical Specifications

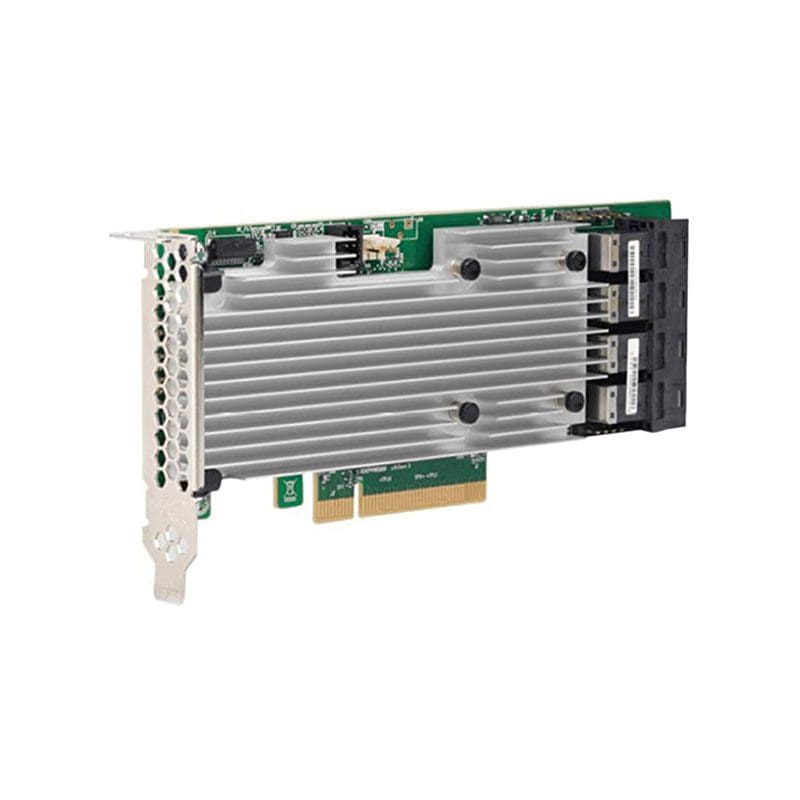

LSI Logic MegaRAID 16-Port SATA 6Gbps / SAS 12Gbps PCI Express 3.0 x16 MD2 Low Profile RAID 0/1/5/6/10/50/60 Controller Card
Manufacturer Part Number 05-25708-00
Brand Name LSI Logic
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
Memory
Cache Memory 2 GB
Interfaces/Ports
Total Number of SAS Ports 16
Number of SAS Ports (Internal) 16
SAS Connector Details 4 SFF-8643
Physical Characteristics
Height 2.7″
Width 6.1″
Form Factor Plug-in Card
Weight (Approximate) 1.32 lb
Miscellaneous
Platform Supported Linux
PC
