05-25688-00 Technical Specifications

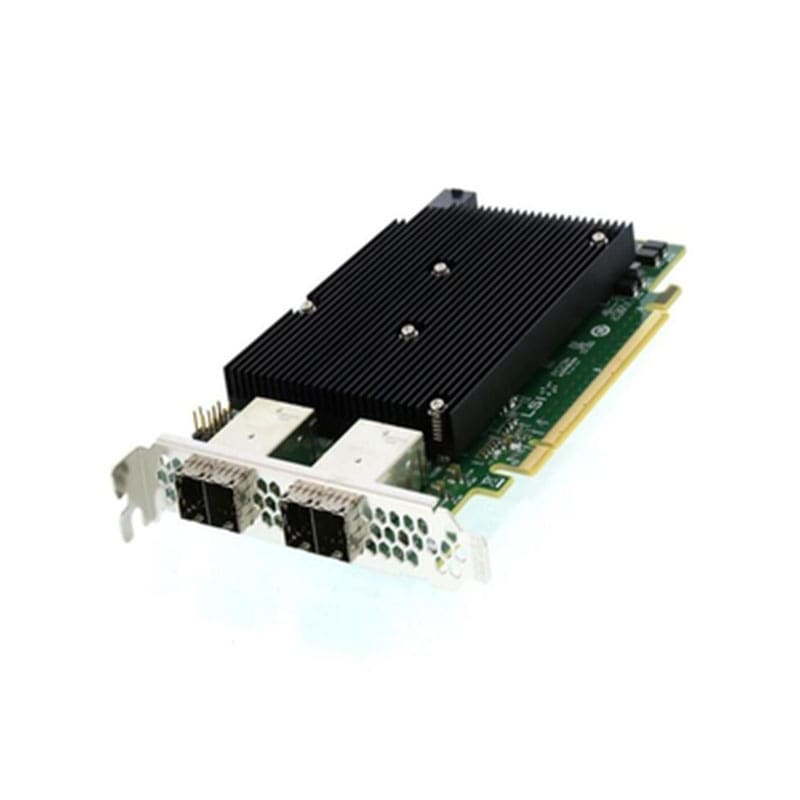

Broadcom 16-Ports 12GBPS SAS/SATA To PCI-Express Host Bus Adapter
Manufacturer: Broadcom
Part Number or SKU# 05-25688-00
Device Type: Controller
Technical Information
Io Controller: Two Sas 3008/ Fusion Mpt 2.5
Storage Connectivity Data Transfer Rates: 16 Ports, 12gb/s Sas 3.0 compliant
Sas Bandwidth: Half Duplex (x8 Wide Bus)9600 Mb/s
Port Configurations:16 Ea, X1 Ports (individual Drives)/4 Ea, X4 Wide
ports/2ea , X8 Wide Ports.
Host Bus: X16 Lane, Pci Express 3.0 Compliant
Pci Data Burst Transfer Rates: Half Duplex X16, Pcie, 16000 Mb/s.
Physical Dimensions: 4.4 X 6.6
