00MU402 Technical Specifications

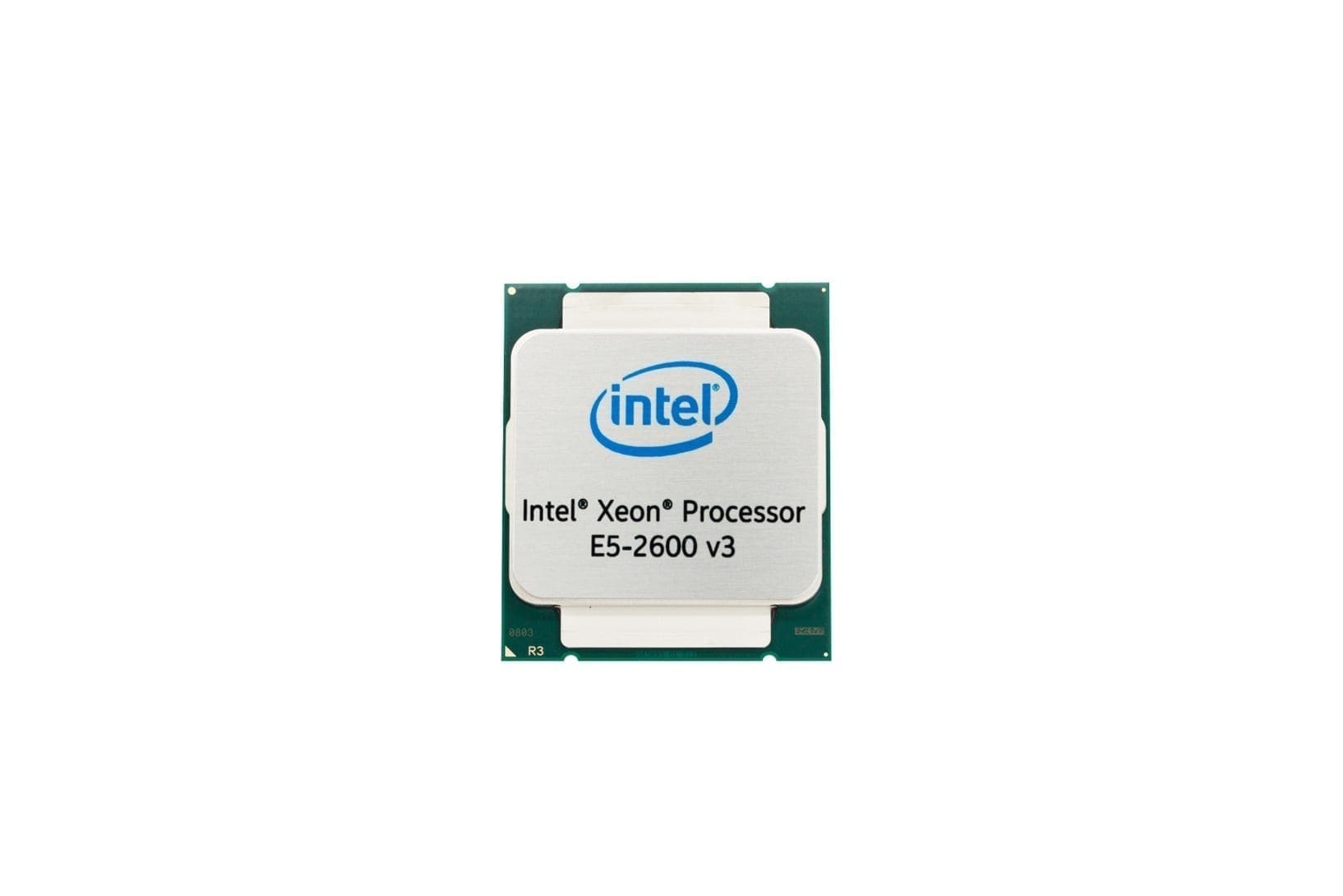

IBM 2.60GHz 9.60GT/s QPI 30MB L3 Cache Socket FCLGA2011-3 Intel Xeon E5-2685 v3 12 Core Processor Upgrade
Brand Intel
Part No. 00MU402
Processor Type Server
Series Xeon Processor
Core Model Type/ProcNo. E5-2685 v3
Processor Code Name Haswell
Core Stepping M1
Manufacturing Technology 22 nm
CPU ID String 0306F2h
# of Cores 12
# of Threads 12
Clock Speed 2.60 GHz
L3 Cache Size 30 MB
Front Side Bus / QuickPath Interconnect 9.60 GT/s QPI
Thermal Power 120 Watts
VID Voltage Range 0.65V – 1.3V
CPU Socket Type LGA 2011
