00KA076 Technical Specifications

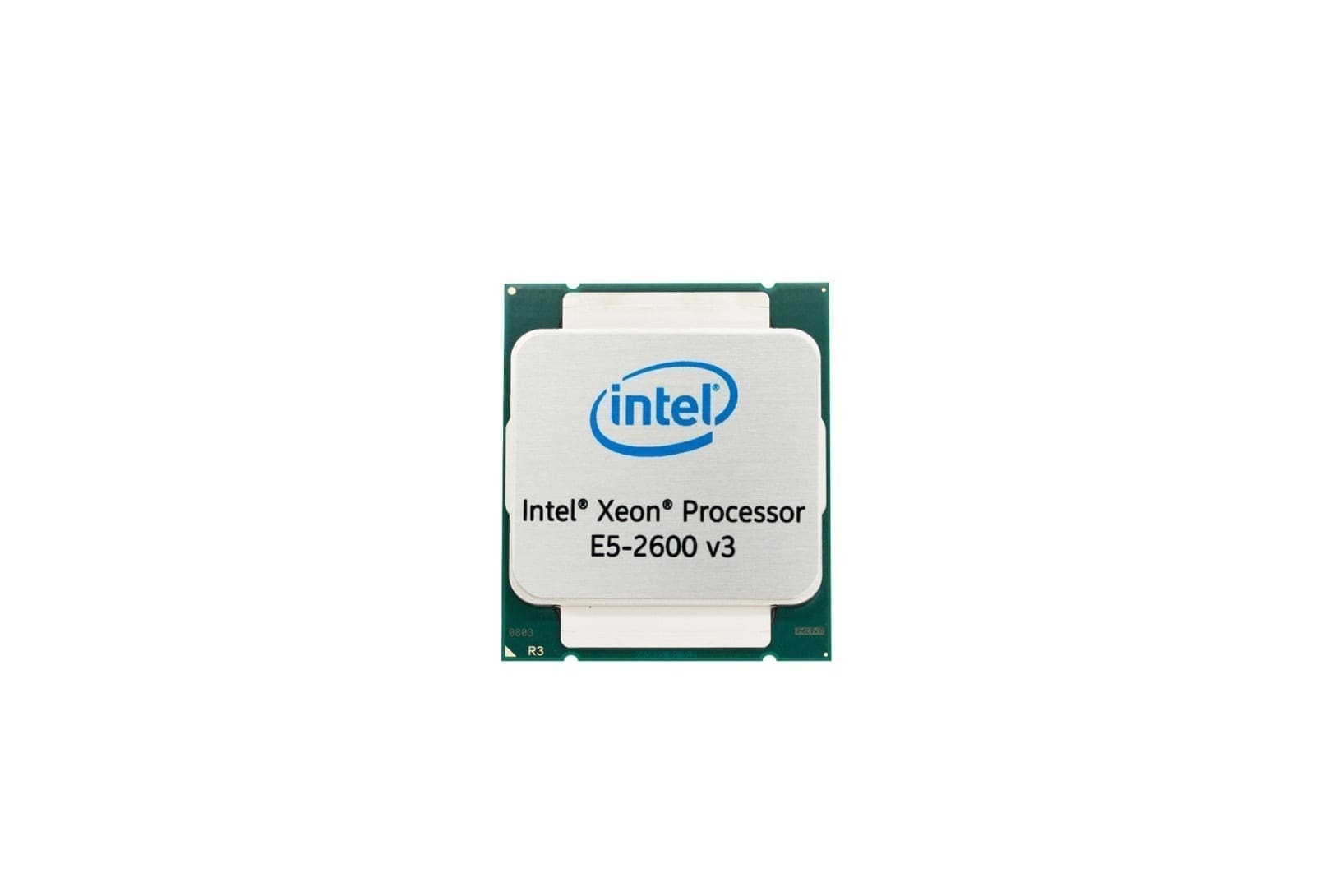

IBM 2.60GHz 9.60GT/s QPI 30MB L3 Cache Intel Xeon E5-2690 v3 12 Core Processor Upgrade
Brand Intel
Part No. 00KA076
Processor Type Server
Processor Family E5-2600 v3
Series Xeon Processor
Core Model Type/ProcNo. E5-2690 V3
Processor Code Name Haswell
Core Stepping M0
Manufacturing Technology 22 nm
CPU ID String 306F2
# of Cores 12
# of Threads 24
Clock Speed 2.60 GHz
L3 Cache Size 30 MB
Front Side Bus / QuickPath Interconnect 9.60 GT/s QPI
Thermal Power 135 Watts
VID Voltage Range 0.65V–1.30V
CPU Socket Type LGA 2011-3
Product Condition OEM
