00D2584 Technical Specifications

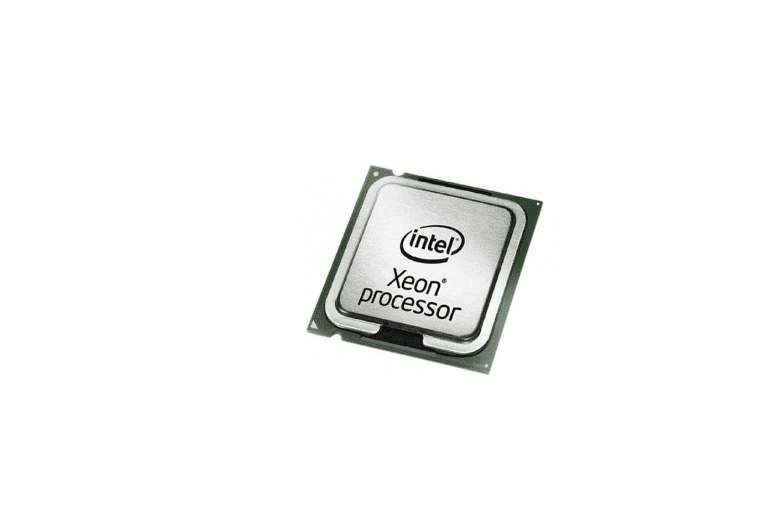

IBM 2.20GHz 7.20GT/s QPI 15MB L3 Cache Intel Xeon E5-2430 6 Core Processor Upgrade for System x3300 M4 7382
Brand Intel
Part No. 00D2584
Processor Type Server
Processor Family E5-2400
Series Xeon Processor
Core Model Type/ProcNo. E5-2430
Processor Code Name Sandy Bridge EN
Core Stepping C1
Manufacturing Technology 32 nm
CPU ID String 206D6
# of Cores 6
# of Threads 12
Clock Speed 2.20 GHz
L3 Cache Size 15 MB
Front Side Bus / QuickPath Interconnect 7.20 GT/s
Thermal Power 95 Watts
VID Voltage Range 0.6V-1.35V
CPU Socket Type LGA 1356
Product Condition OEM
