00D1948 Technical Specifications

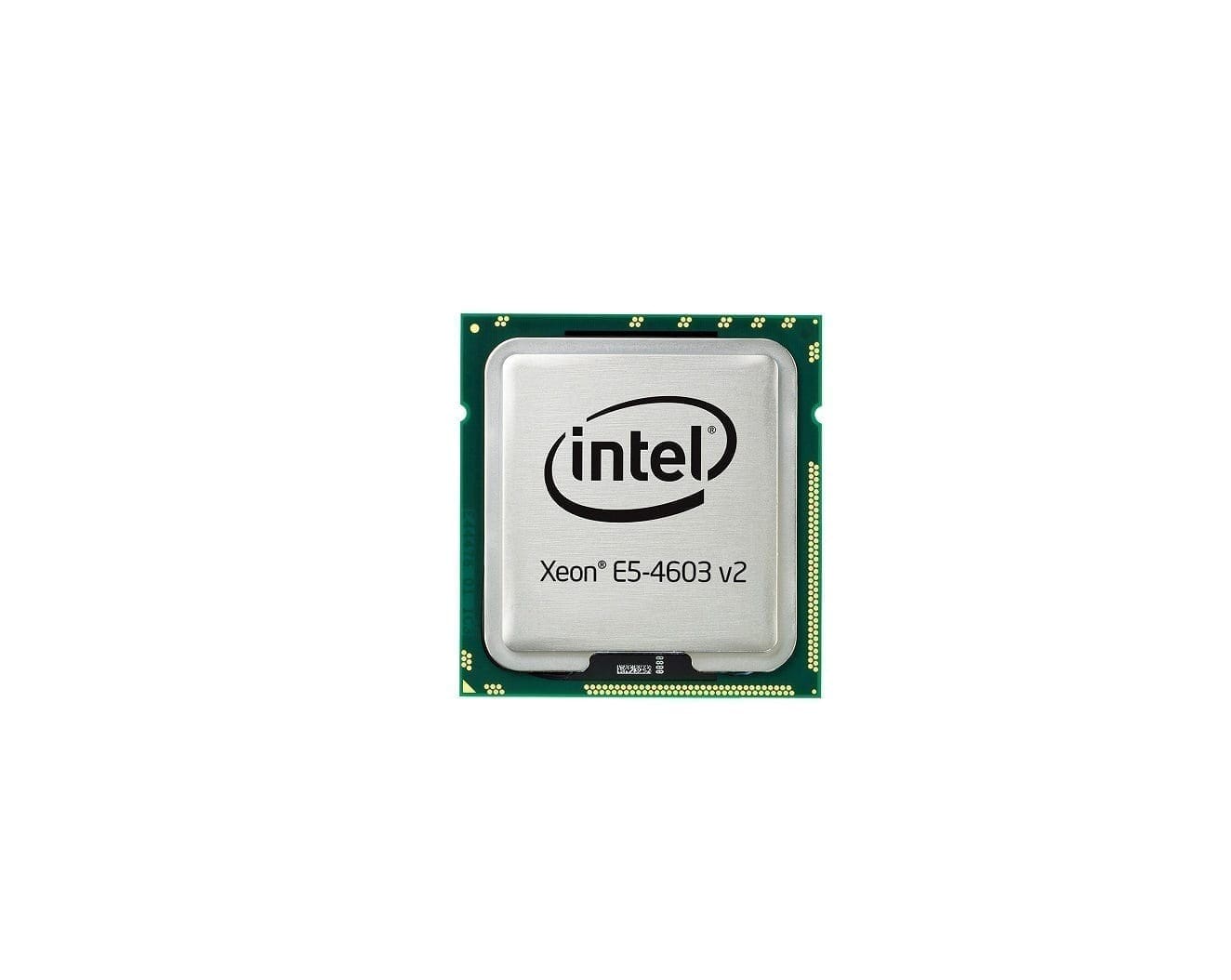

IBM 2.20GHz 6.40GT/s QPI 10MB L3 Cache Intel Xeon E5-4603 v2 Quad Core Processor Upgrade
Brand Intel
Part No. 00D1948
Processor Type Server
Processor Family E5-4600 v2
Series Xeon Processor
Core Model Type/ProcNo. E5-4603 v2
Processor Code Name Ivy Bridge EP
Core Stepping S1
Manufacturing Technology 22 nm
CPU ID String 306E4
# of Cores 4
# of Threads 8
Clock Speed 2.20 GHz
L3 Cache Size 10 MB
Front Side Bus / QuickPath Interconnect 6.40 GT/s QPI
Thermal Power 95 Watts
VID Voltage Range 0.65-1.30V
CPU Socket Type LGA 2011
Product Condition OEM
