00AY765 Technical Specification

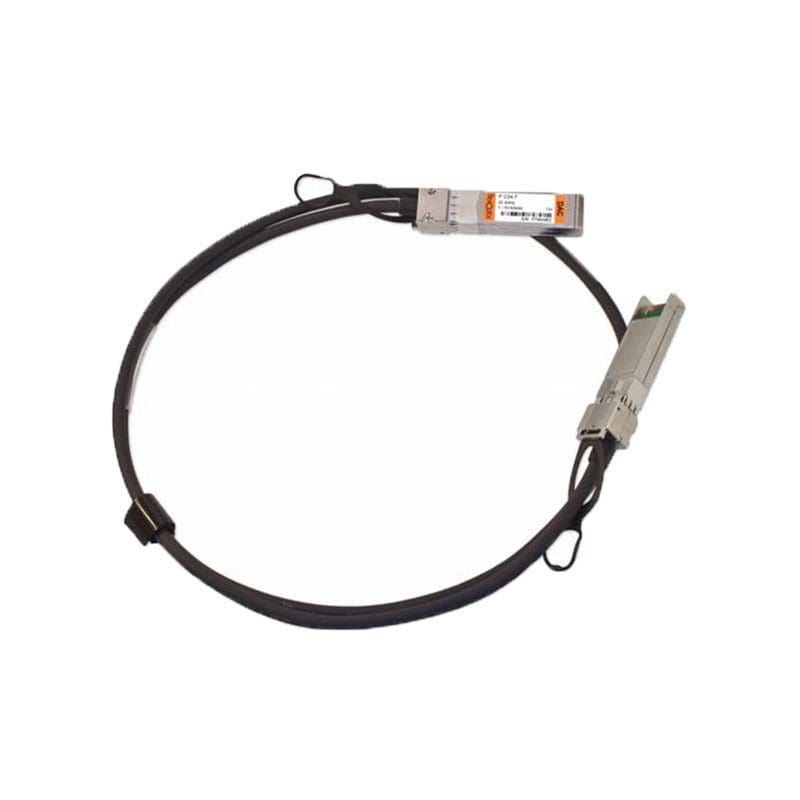

IBM 2m Passive DAC SFP+ Cable
Manufacturer : IBM
Manufacture Part Number : 00AY765
Form Factor SFP+ DAC Cable Data Rate 10.5Gb/s
Passive or actively equalized Passive Supply Voltage 3.3V
Cable Length 2 m Cable impedance 100 Ω
Cable Type Twinax Wire Gauge 30AWG
Minimum cable bend radius 25 mm Cable Jacket Type PVC
Connector SFP+/SFP+ Digital Diagnostic Monitoring N/A
Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C Weight 0.18 kg
