00AE696 Technical Specifications

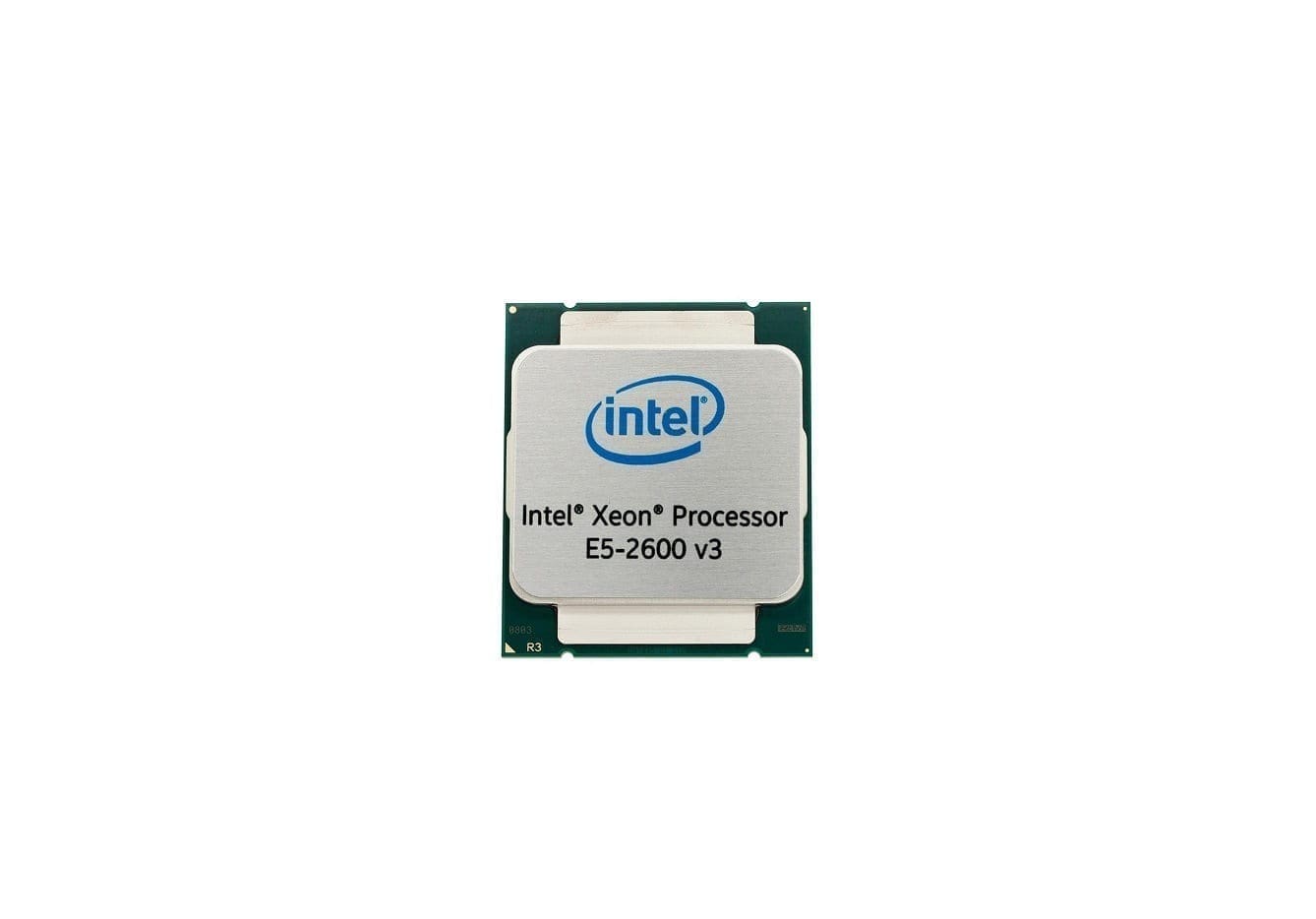

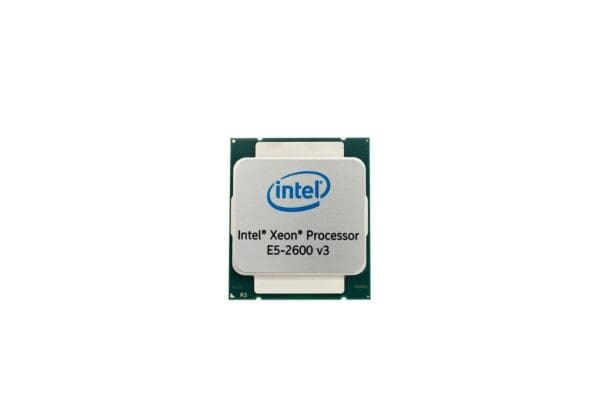

IBM Lenovo 2.30GHz 9.60GT/s QPI 35MB L3 Cache Intel Xeon E5-2695 v3 14 Core Processor Upgrade
Brand Intel
Part No. 00AE696
Processor Type Server
Processor Family E5-2600 v3
Series Xeon Processor
Core Model Type/ProcNo. E5-2695 V3
Processor Code Name Haswell
Core Stepping C0
Manufacturing Technology 22 nm
CPU ID String 306F2
# of Cores 14
# of Threads 28
Clock Speed 2.30 GHz
L3 Cache Size 35 MB
Front Side Bus / QuickPath Interconnect 9.60 GT/s QPI
Thermal Power 120 Watts
VID Voltage Range 0.65V–1.30V
CPU Socket Type LGA 2011-3
Product Condition OEM
